Power transmitter

3-pin

  • ArtNo: 10306--------00
  • EAN: 4042203195554

Product description

Reliable power transmission from the door frame to the door leaf. Door contacts are mortise-fitted in the frame and in the door leaf. When the door is closed, the spring contacts touch and form an electrical circuit to the door strike.

Scope of delivery

  • Power transmitter

Note

  • The gap between the contact blocks is max. 5 mm in each case.
Technical data
Current intensity1.5 A
Max. voltage24 V AC/DC
ConnectionScrew terminals, 3-pin
Required power supply24 V

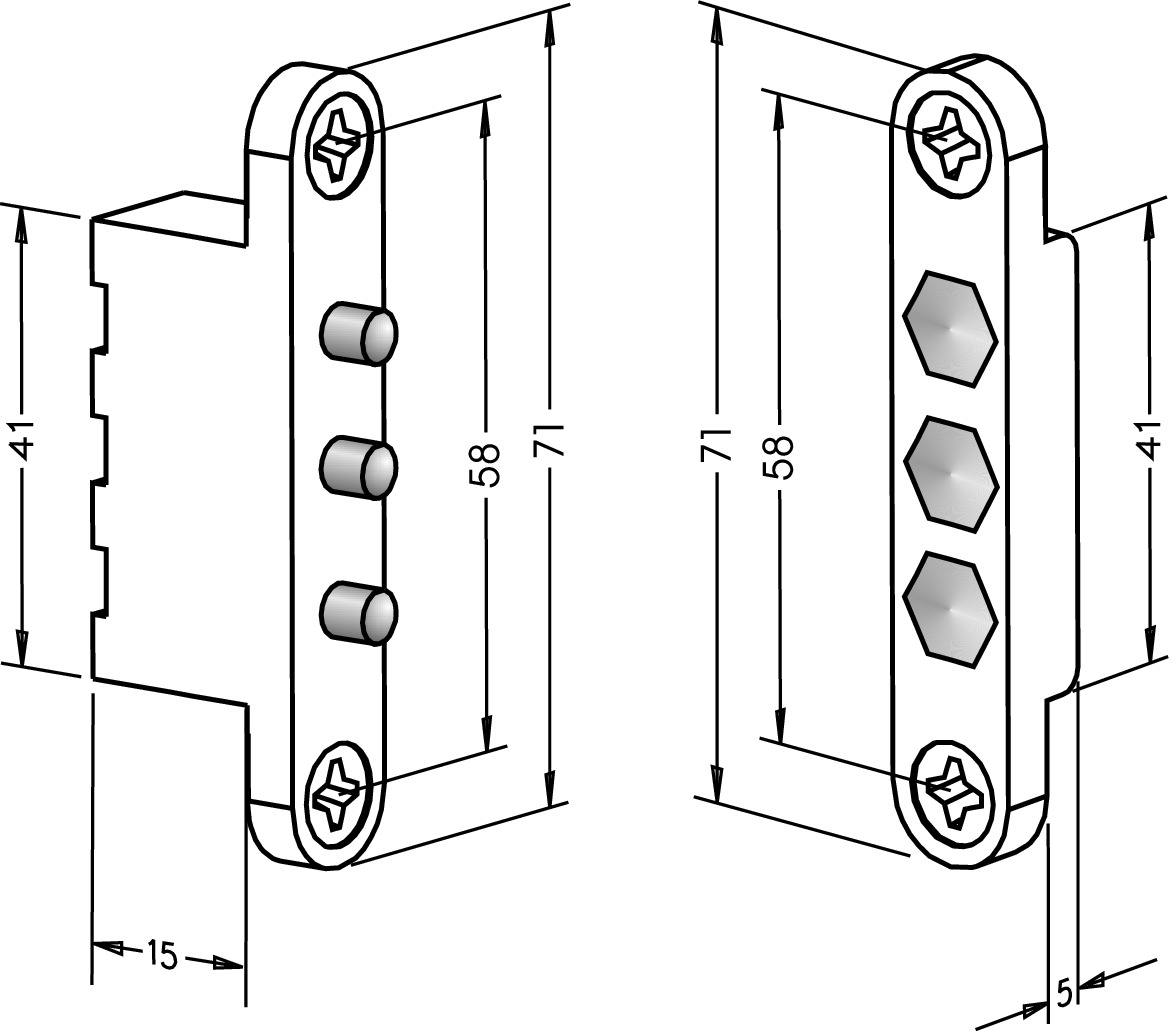

Height71 mm
Width13 mm
On-time / off-timemax. 10 sec / 40 sec at 1,5 A
Contact pin materialBrass, nickel-coated
