Daily alarm

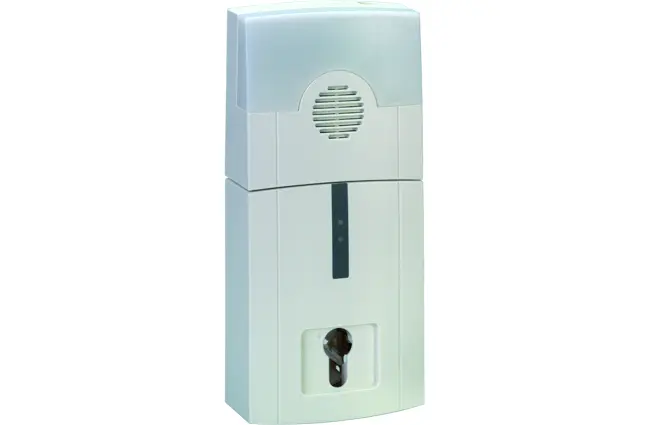

Individual door monitoring unit, without profile half cylinder
Product description
Individual door monitoring unit, designed for profile half cylinder
Day alarm unit for monitoring emergency exit doors.
This day alarm unit combines all the functions for a stand-alone surveillance system for emergency exit doors.
It can network up to 16 day alarm units via a proprietary bus system (two-wire, four-wire to parallel panel).
These modules feature mode indicators (2 LEDs) and a push-button for remote connection (activation and deactivation) for each day alarm unit connected to the system. An audible alarm (collective alarm) is also triggered if an unauthorised person opens the
Overview of Advantages
- Integrated, energy-saving power supply; 230 V AC; with low power consumption
- Operation via profile half cylinder
- Stand-alone solution for an emergency exit door
- Acoustic signal approx. 100 dBA
- Optical alarm signal
- Alarm unit can be disconnected for better recognisability
- Prepared for profile half-cylinder
- Connection for external key switch
Scope of delivery
- 1 tag alarm
- 1 operating manual
| Max. contact load capacity | ca. 20 mA |
| Supply voltage | 230 V AC |
| Input operating voltage | 9 V DC - 15 V DC |
| Detector group voltage | 8 V DC |
| Operating temperature range | "-5 °C to +45 °C" |
| Class of protection | IP 40 |
| Output for operating state OFF | 12 V DC / 40 mA |
| Output for alarm | 12 V DC / 80 mA |
| Output for "external buzzer" | 12 V DC / 50 mA |
| Height | 243 mm |
| Width | 110 mm |
| Depth | 53 mm |
| Environmental class acc. to VdS | II |
| Type of cylinder | Standard dimension A = 30, A = 35 possible |
| Storage temperature | -25 °C to +70 °C |
| Colour | Pure white, similar to RAL9016 |
| Dimension | W 110 x H 140 x D 53 mm |
| Rated frequency | 50 Hz |
| Power consumption in stand-by-mode | 2.1 VA |
| Detector group input impedance | 12K1 ± 40% |
| Detector group for tamper analysis | 12K1 ± 40% |
| Output for audible alarm | < 40 mA (active low) |
| Output for visible alarm | < 40 mA (active low) |
| | Order number | Product |
|---|---|---|
 | 2.0507-00300000 | Profile-half cylinder For contact locks |
