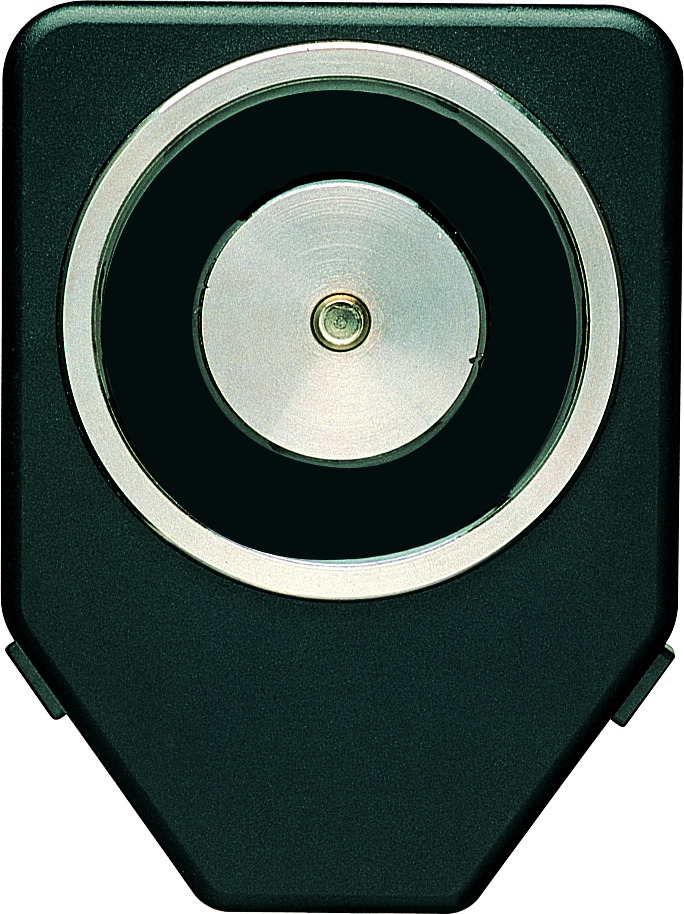

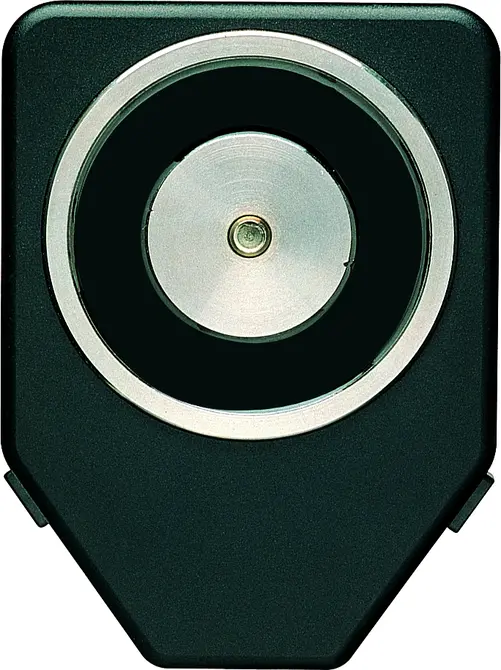

Holding magnet 830xxIS/U

Product description

Holding magnets in plastic housing for surface mounting, with optional interrupter push-button

Technical data
Supply voltage24 V DC
Current consumption at 24 VModel 830-3: 300 N / 20 mA; Model 830-5: 500 N / 25 mA; Model 830-8: 800 N / 45 mA; Model 83012: 1200 N / 105 mA
Operating temperature range0 to +50 °C
Certified in compliance withEN 1155

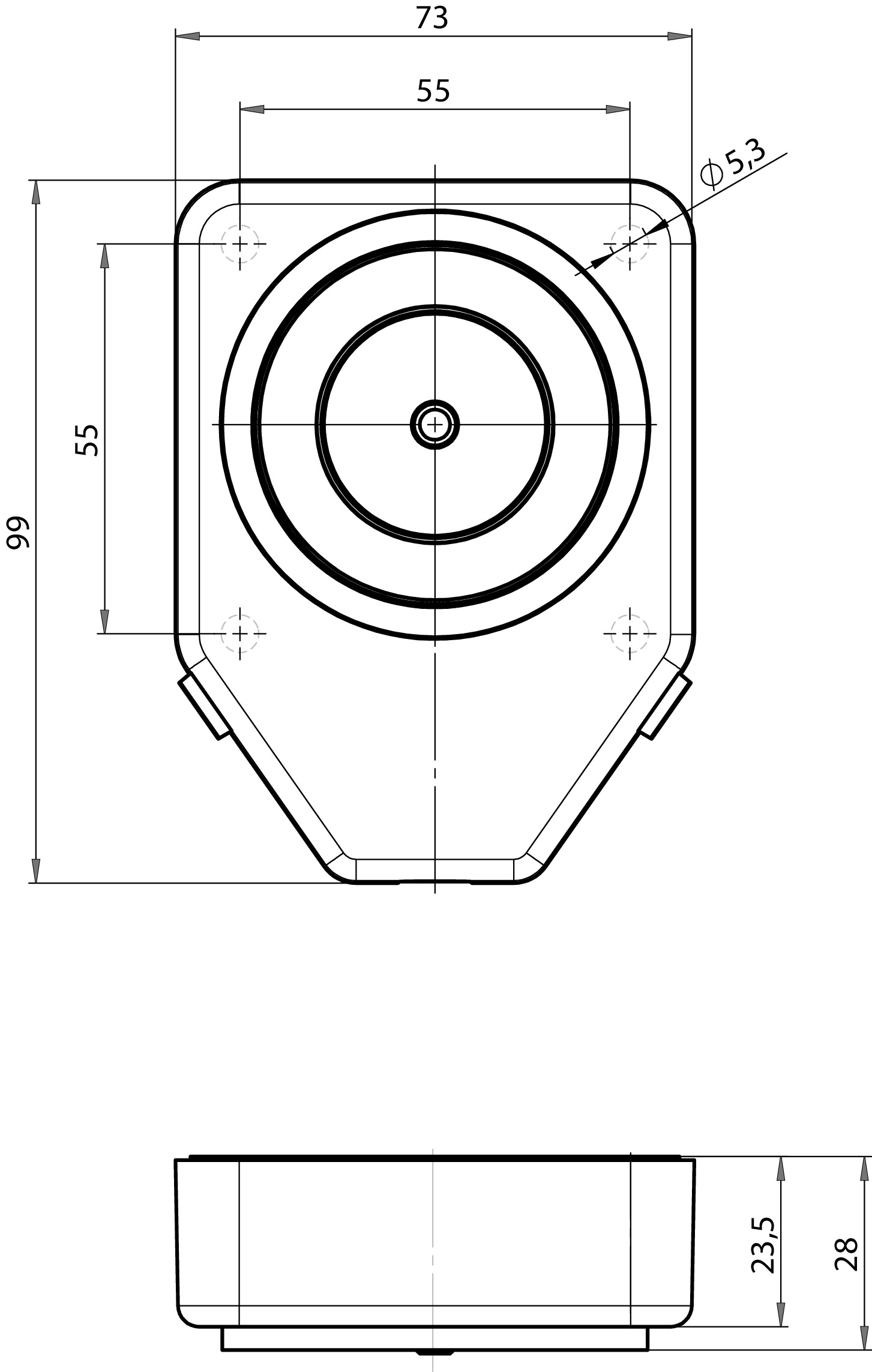

Height99 mm
Width73 mm
Depth28 mm
Continous duty100 % ED
Class of protectionIP 40
Variants that can be ordered
Order number
Description
830-3IS-----F90In plastic housing, 300 N holding force
830-5IS-----F90In plastic housing, 500 N holding force
830-8IS-----F90In plastic housing, 800 N holding force
83012IS-----F90In plastic housing, 1200 N holding force
830-3ISU----F90In plastic housing with interrupter push-button, 300 N holding force
830-5ISU----F90In plastic housing with interrupter push-button, 500 N holding force
830-8ISU----F90In plastic housing with interrupter push-button, 800 N holding force
83012ISU----F90In plastic housing with interrupter push-button, 1,200 N holding force
