Mounting set model 10313-24

Lead covers with installation casing for wood construction

  • ArtNo: 10313-24-----00
  • EAN: 4042203350847

Product description

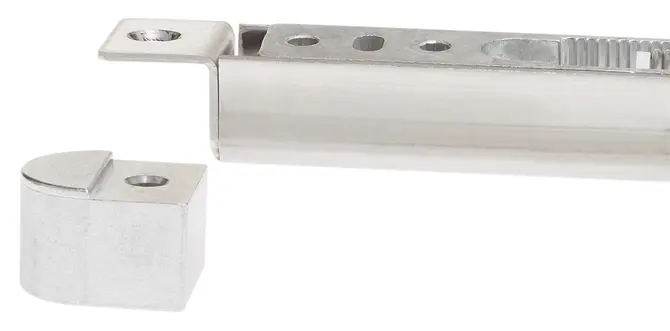

This saves time when installing the concealed lead covers (one-sided and on both sides) in wood structures. It consists of two radius end pieces and 5 stainless steel screws to fasten the installation housing and the plate on the opposite side. When using the 10313 installation set, only a cut-out is required, with no finishing work. There is no longer the need to chisel out to fit the installation housing and the square fastening plate.

Note

  • For long version: Width 24 mm

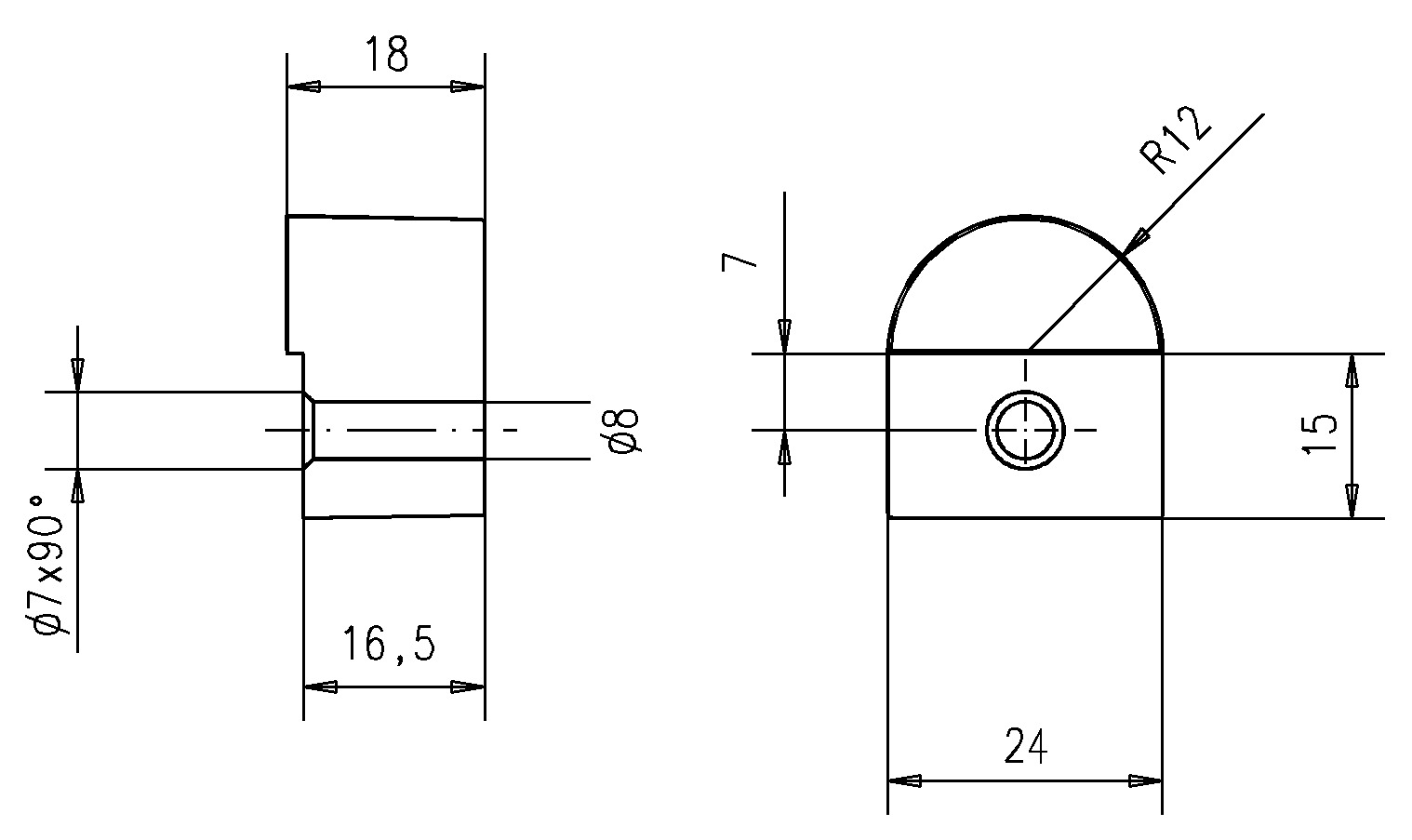

Technical data
Length27,5 mm
Width24 mm
Depth18 mm
