Lead cover
Short model
Product description

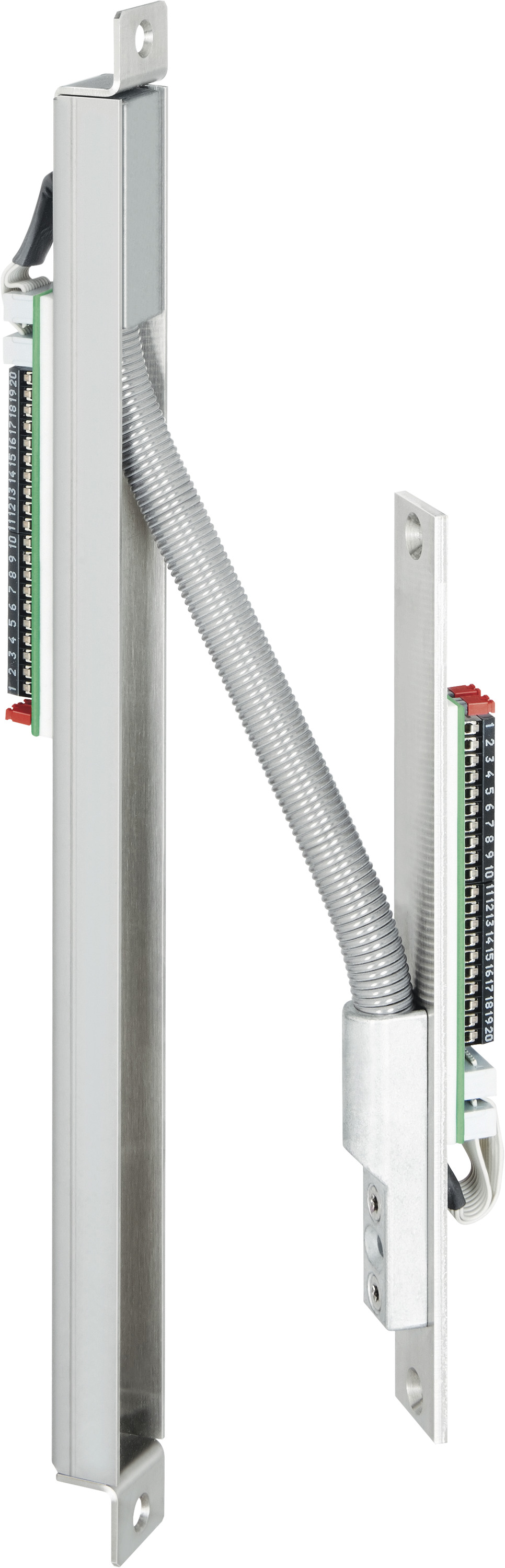

20-pin lead cover for power transmission between frame and leaf
Overview of Advantages
- Lead cover for concealed mounting.
- 24 mm width installation casing
- With integrated flexible cable to prevent cale breakage
- Clamp/plug connector technology, 20-pin
- With 2 jumpers to the bridge of PIN 1+2 as well as 3+4 for increase of power load
- One-sided installation casing suitable for wood, metal and plastic profiles
- Accessories
| Input operating voltage | 24 V +20% |
| Max. current consumption | 1 A 100% ED, 4 A max. 1 sec. 10% ED |
| Max. current consumption jumper 1+2 connected | 2 A 100% ED, 5 A max. 1 sec. 10% ED |
| Contact resistance per signal | 0.21 Ohm |
| Signal transmission | 20-pin |
| Connecting cable | Plug-in device |
| Version | Installation casing on one side/angular mounting plate |
| Material mounting plate / installation casing | Stainless steel |
| Material spiral hose | Stainless steel |
| Max. permissible horizontal rotation | 100 mm |
| Cycles at 180 turns | 1000000 |
| Length installation casing / mounting plate | 330 mm / 200 mm |
| Width installation casing / mounting plate | 24 mm / 24 mm |
| Depth installation casing / mounting plate | 33 mm / 19 mm |
