Lead cover

Short model

  • ArtNo: 10314-34-10--00
  • EAN: 4042203699229

Product description

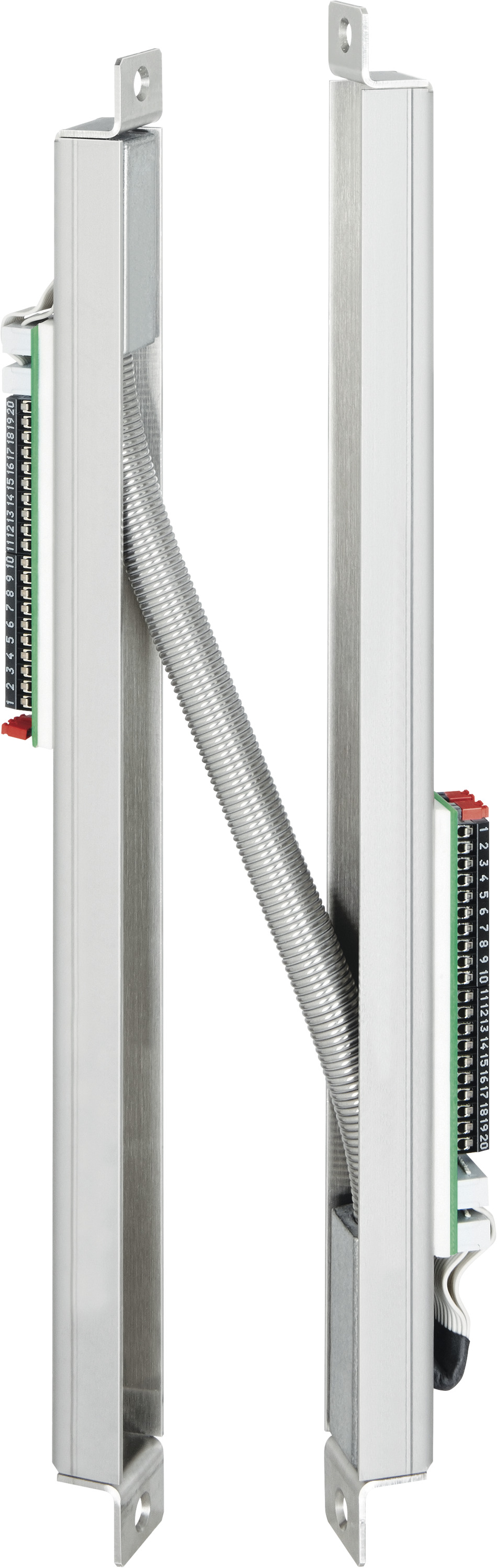

20-pin lead cover for power transmission between frame and leaf

Overview of Advantages

  • Lead cover for concealed mounting.
  • 24 mm width installation casing
  • With integrated flexible cable to prevent cale breakage
  • Clamp/plug connector technology, 20-pin
  • Installation casing on both sides
  • With 2 jumpers to the bridge of PIN 1+2 as well as 3+4 for increase of power load
  • The particular advantage of this mounting type is being able to position the casing practically flush with the frame (<1 mm distance when door is closed). Minimal gaps for door rotation, as with inside hinges, for instance, do not result in the door jamming.
Technical data
Input operating voltage24 V +20%
Max. current consumption1 A 100% ED, 4 A max. 1 sec. 10% ED
Max. current consumption jumper 1+2 connected2 A 100% ED, 5 A max. 1 sec. 10% ED
Contact resistance per signal0.21 Ohm
Signal transmission20-pin
Connecting cablePlug-in device
VersionInstallation casing on both sides
Material installation casingStainless steel
Material spiral hoseStainless steel
Max. permissible horizontal rotation100 mm
Cycles at 180 turns1000000
Length330 mm
Width24 mm
Depth33 mm
