Lead cover

Long version

  • ArtNo: 10314R40-----00
  • EAN: 4042203698864

Product description

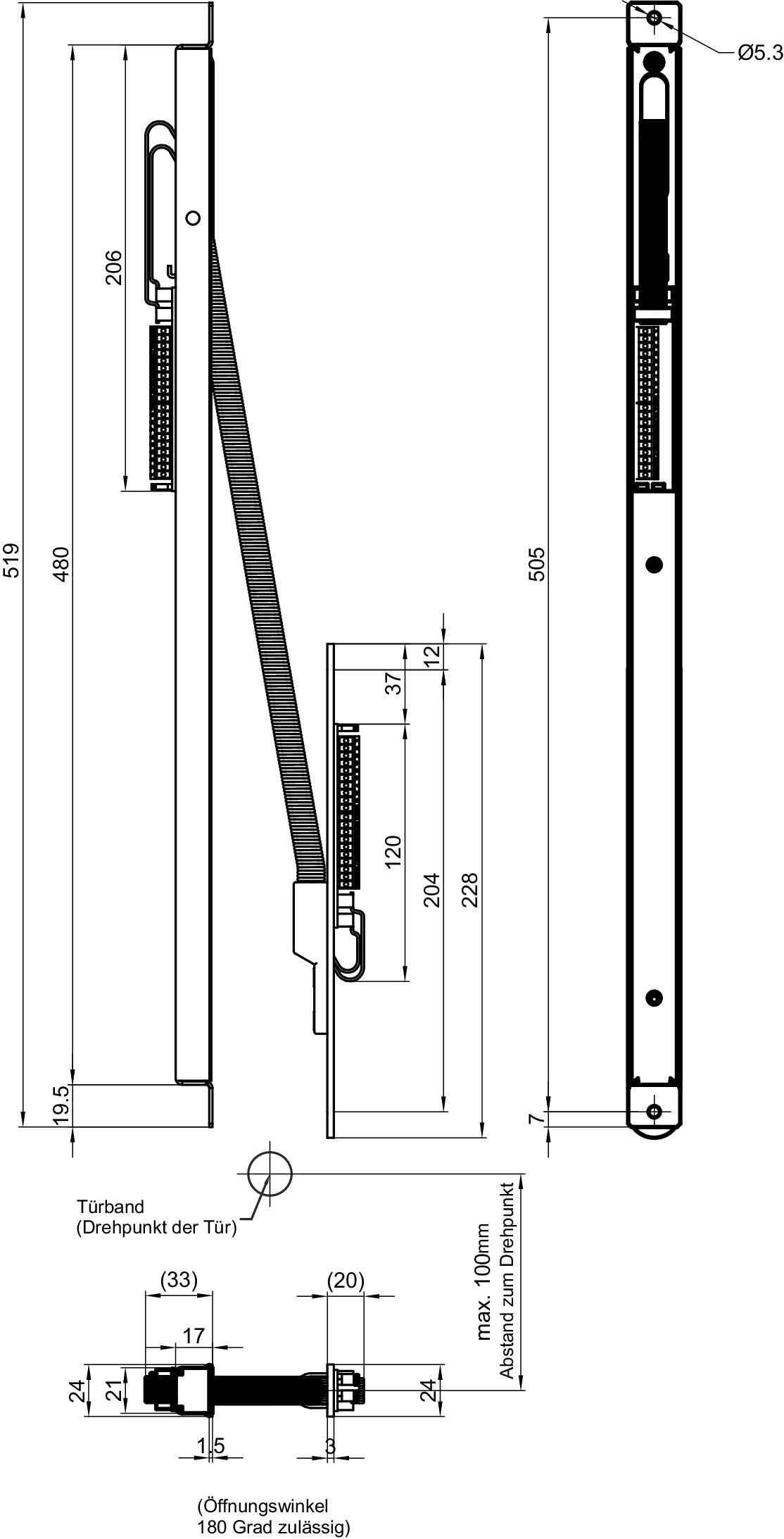

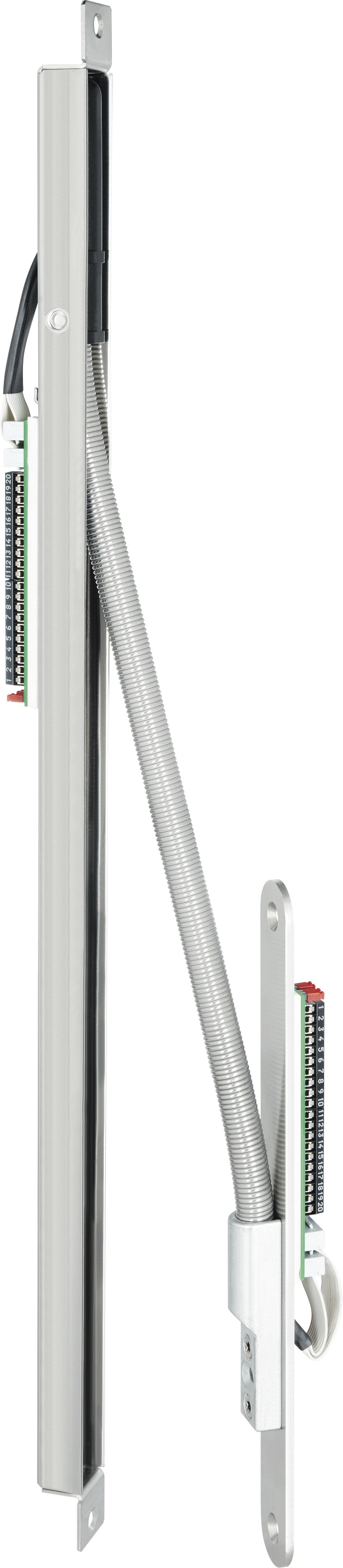

Lead cover for concealed mounting.

With integrated flexible cable to prevent cale breakage

Clamp/plug connector technology, 20-pin

With 2 jumpers to the bridge of PIN 1+2 as well as 3+4 for increase of power load.

One-sided switch box and curved end mounting plate suitable for wooden profiles

Accessories

Scope of delivery

  • Lead cover

Note

  • Long version
Technical data
Contact resistance per signal0.35 Ohm
Input operating voltage24 V +20%
Max. current consumption1 A 100% ED, 4 A max. 1 sec. 10% ED
Max. current consumption jumper 1+2 connected2 A 100% ED, 5 A max. 1 sec. 10% ED
Connecting cablePlug-in device
VersionInstallation casing on one side/curved end mounting plate
Material mounting plate / installation casingStainless steel
Material spiral hoseStainless steel
Max. permissible horizontal rotation200 mm
Length installation casing / mounting plate519 mm / 228 mm
Width installation casing / mounting plate24 mm / 24 mm
Depth installation casing / mounting plate33 mm / 19 mm
Cycles at 180 turns1000000
Signal transmission20-pin
