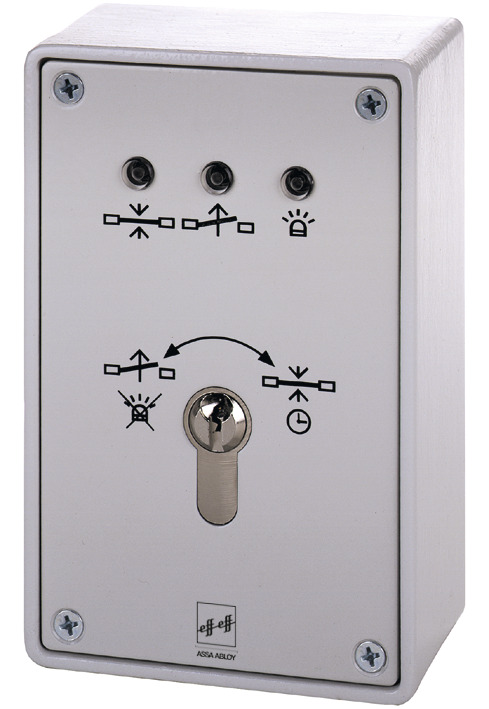

Surface-mounted key switch
With control LED; without cylinder; 12/24 V; grey white RAL 9002; surface-mounted
Product description
An operating unit to release doors against direction of escape (outdoors) or an operating unit in direction of escape for applications without local emergency button; in conjunction with escape door control unit.
Key switch module
- With a momentary n.o. contact which can be operated to the left or right,
- For locking/unlocking, temporary releasing
- Metal housing
- Connections: screw terminals
Scope of delivery
- 1 operating unit
- 1 operating manual
Note
- The standard operating element is supplied without a cylinder.
| Rated voltage | 12-24 VDC SELV |
| Power consumption | 0.05 A at 24 V DC |
| Type of cylinder | Designed for with profile half-cylinder; cam position 8 x 45°; 30.5 mm long |
| LED display | Yes (red, green, yellow) |
| Buzzer | Yes |
| Sabotage switch | Yes |
| Dimension | (WxHxD): 100x155x50mm |
| | Order number | Product |
|---|---|---|
 | 2.0507-00300000 | Profile-half cylinder For contact locks |
 | ZS.1332-1----00 | Security Screw Set Model ZS.1332 For operating device 1332 |
