Control panel - Basic unit module

4 doors, 12/24 V DC

  • ArtNo: 92571A000000000
  • EAN: 4042203453159

Product description

Central operating and display unit for 4 doors with escape door controls connected to TS bus network.

Processor-controlled central module with:

Buzzer as an audible collective fault alarm

Push-buttons to re-set the alarm

two relay contacts to forwarding locking status signals,

LED operating mode display

Three LEDs to indicate status

Push-button to test LED indicators

Key switch to authorise/block operator buttons to control doors.

With operating and display devices for four doors featuring:

Three LEDs (red, green, yellow) to indicate door status

Two buttons to lock/unlock doors or re-set device

Can be extended with control panel module, extensions up to about 20 doors

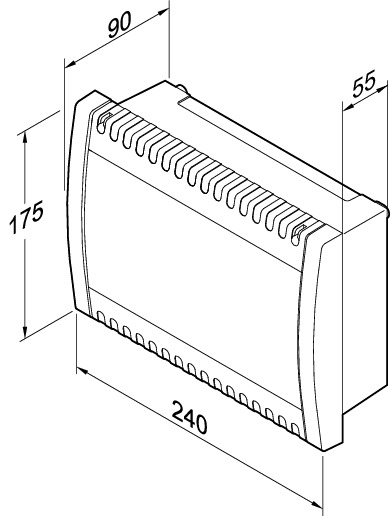

Technical data
Rated voltage12-24 VDC SELV
VersionBasic unit for 4 doors.
