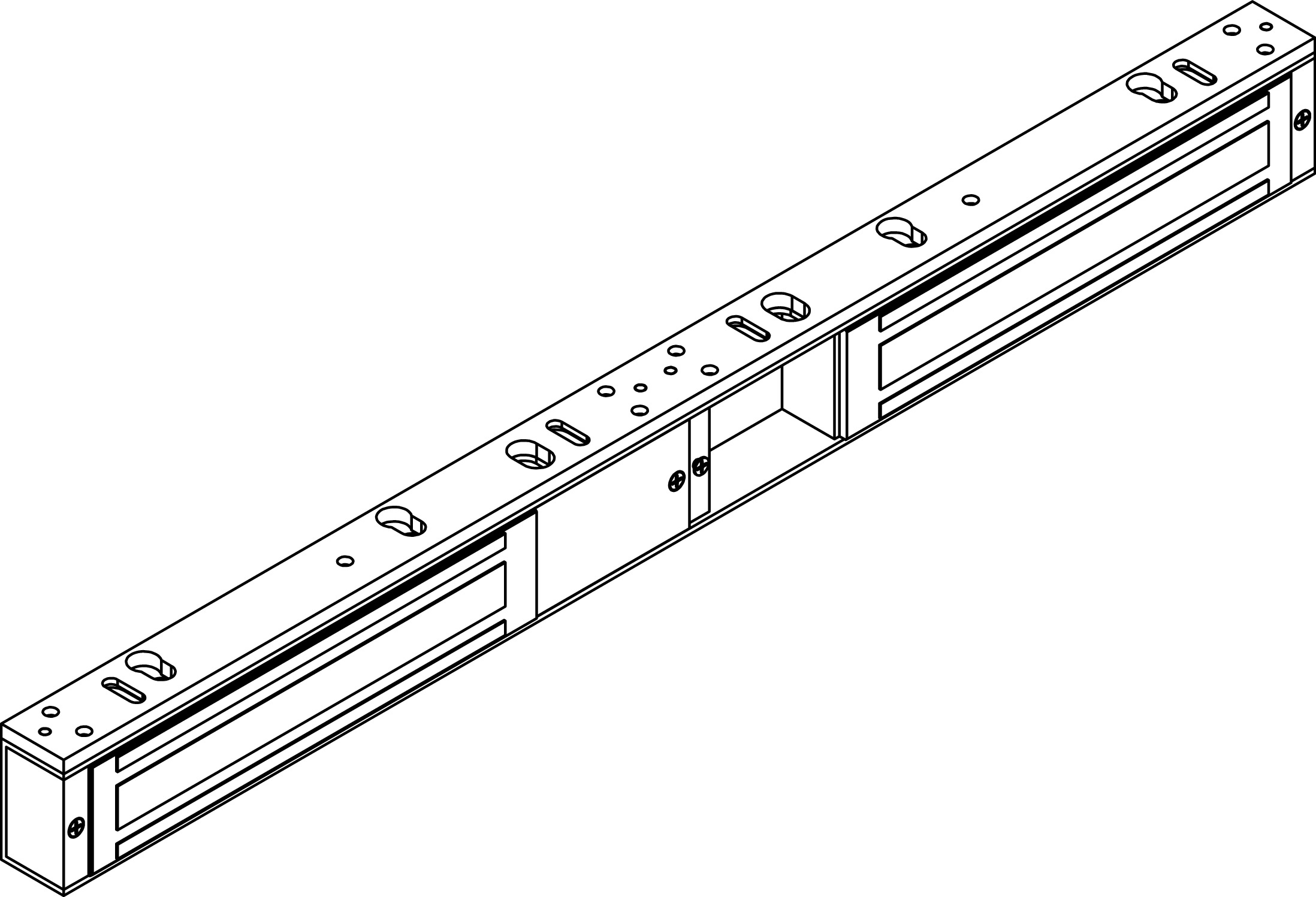

Double-mini-magnet

Product description

Double-mini-magnets offers a very good compromise between size and holding force and are ideal for smaller and normal sized standard double leaf doors. Surface mounting. Versions with integrated hall-sensor for locking monitoring are available as well as divers accessories.

Scope of delivery

  • 1 piece double-magnet with 2 pieces counter plates

Note

  • Holding forces of holding magnets may vary due to material-related fluctuations
Technical data
Input operating voltage12/24 VDC
Current consumption at 12 V DC 505 mA
Current consumption at 24 V DC 260 mA
Mounting methodSurface mounting
Holding force2 x 600 lbs
MaterialAluminium housing surface
Operating temperature range-10 °C to +55 °C
Variants that can be ordered
Order number
Description
MAGD-600SM-----2 x 600 lbs (ca. 2 x 2700 N), 12-24V DC, surface mounted installation
MAGD600SM-----H2 x 600 lbs (ca. 2 x 2700 N), 12-24V DC, surface mounted installation, hall-sensor
MAGD-600SM-UL-H2 x 600 lbs (ca. 2 x 2700 N), 12-24V DC, surface mounted installation, hall-sensor, UL-certification
