Mini-shear-magnet
12-24V DC, screw-in installation, hall-sensor
Product description
Mini-shear-magnets provide relatively high locking pressure despite their very minimal size. The locking force retention system (magnetic force) is reinforced by the side shearing placed counter holding plate with integrated positive locking joints (bolts).
Scope of delivery
- 1 unit mini-shear magnet with counterplate
Note
- Holding forces of holding magnets may vary due to material-related fluctuations
| Input operating voltage | 12/24 VDC |
| Current consumption at 12 V DC | 450 mA |
| Current consumption at 24 V DC | 230 mA |

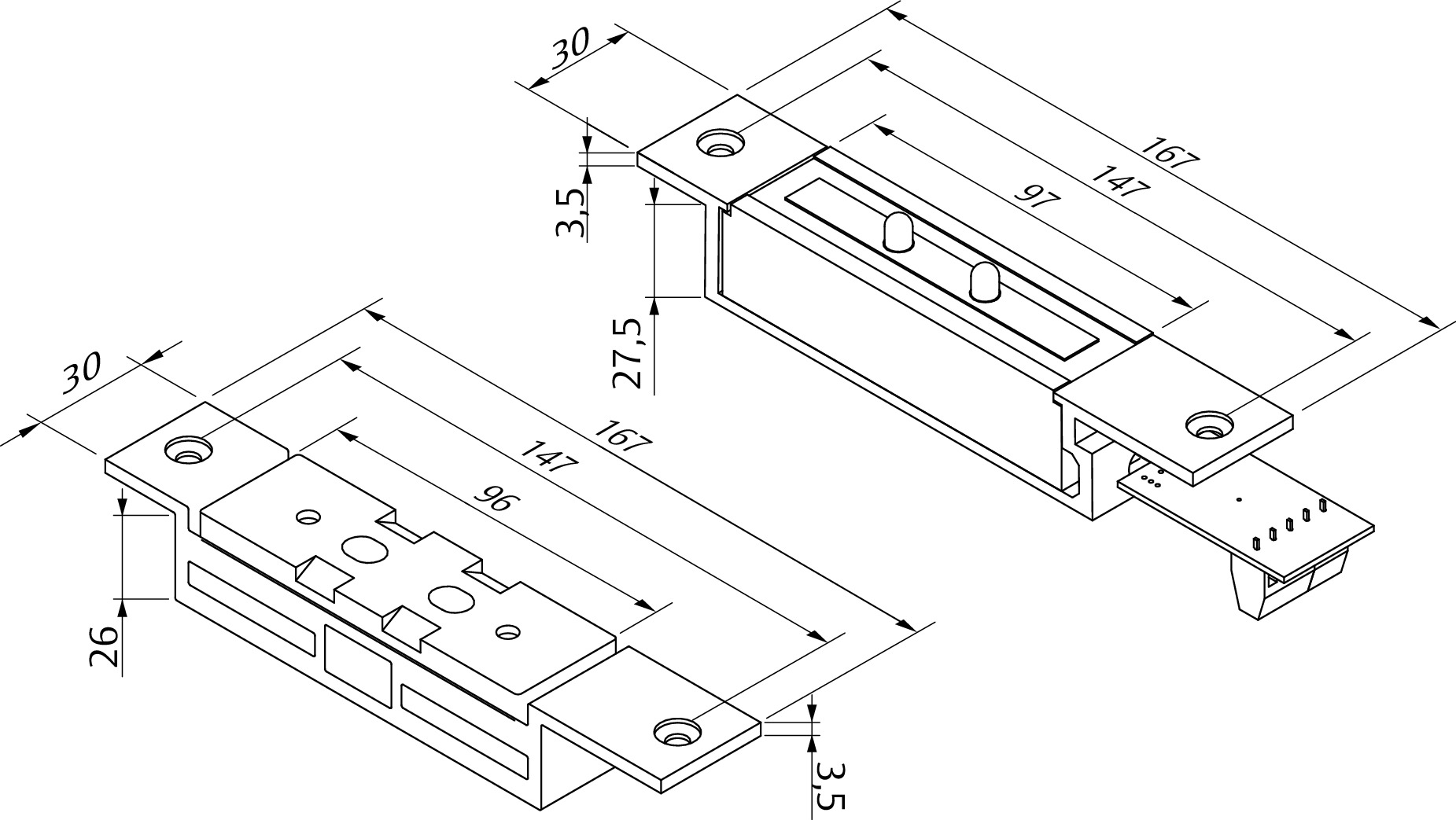

| Length | 167 mm |
| Width | 30 mm |
| Depth | 29.5 mm |
| Counterplate length | 167 mm |
| Counterplate width | 30 mm |
| Counter plate depth | 31 mm |
| Mounting method | Socket mounting |
| Material | Aluminium housing surface |
| Operating temperature range | -10 °C to +55 °C |
| Hall-sensor | Yes |
