Maxi-shear-magnet
12-24V DC, mortise installation, faceplate 30mm
Product description
Maxi-shear-magnets provide very high locking pressure despite being minimum size. The locking force retention system (magnetic force) is reinforced by the side shearing placed counter holding plate with integrated positive locking joints (bolts).
Note
- Face plate 30
| Input operating voltage | 12/24 VDC |
| Current consumption at 12 V DC | 450 mA |
| Current consumption at 24 V DC | 250 mA |

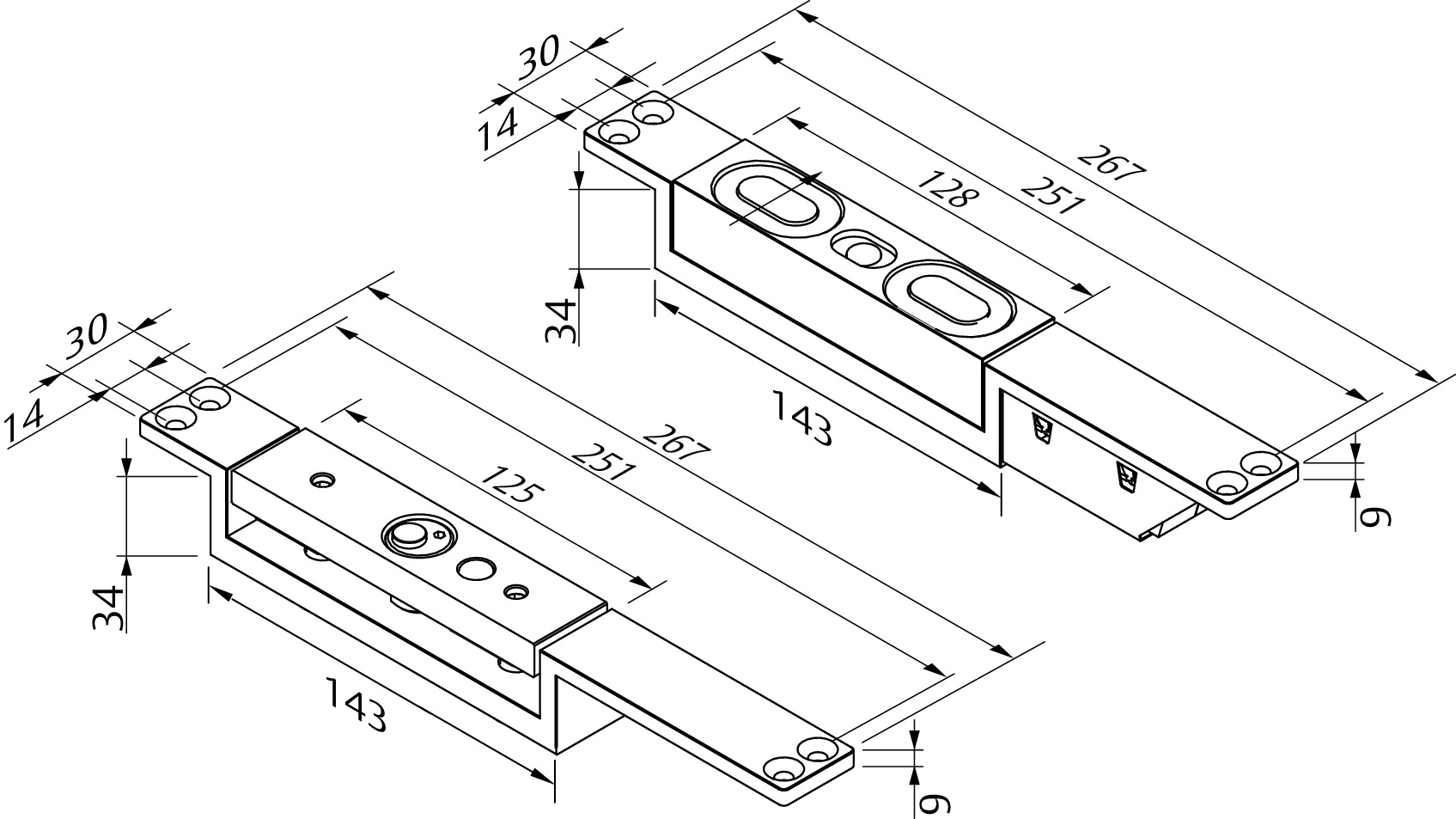

| Length | 267 mm |
| Width | 30 mm |
| Depth | 40 mm |
| Counterplate length | 267 mm |
| Counterplate width | 30 mm |
| Counter plate depth | 40 mm |
| Mounting method | Socket mounting |
| Operating temperature range | -10 °C to +55 °C |
