Surface holding magnet

With counterplate; with hall-sensor; 12/24 V DC; holding force: 5000 N; EV1 silver

  • ArtNo: 828-------44F90
  • EAN: 4042203156302

Product description

Surface holding magnets are suitable for securing doors in an electro-magnetic system. They are easy to install, as there is no need to make modifications or cut-outs in door frames. Surface holding electro-Magnet 828 contains an integrated contact to monitor locking status (Hall effect sensor).

Overview of Advantages

  • The rated voltage can be set on the magnet at either 24 V DC or 12 V DC.

Scope of delivery

  • 1 piece compact surface holding magnet
  • 1 piece counter holding plate

Note

  • Please note at order: In addition to the integrated locking signal, an additional door contact must also be ordered.
Technical data
Input operating voltage12 V DC / 24 V DC
Max. contact load capacity2 A
Current consumption 12 V DC630 mA
Current consumption 24 V DC315 mA
Switching contactPotential-free relay change-over contact

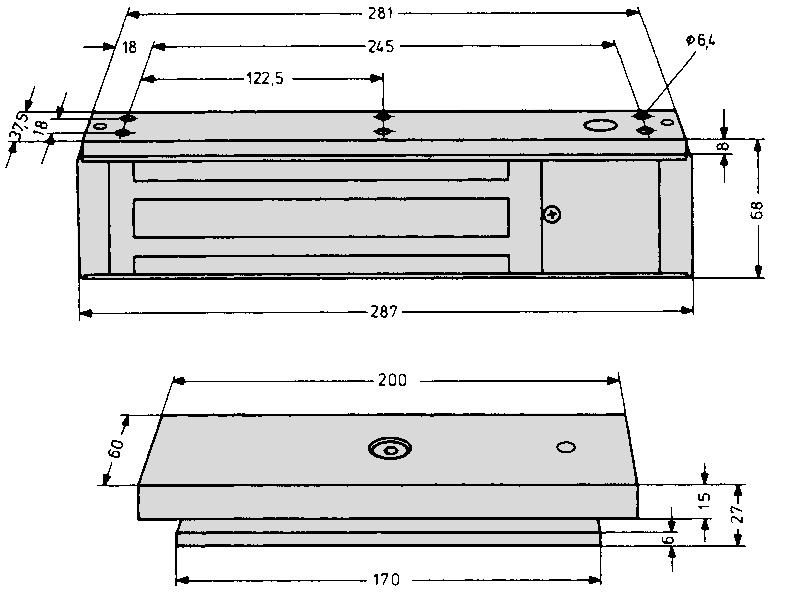

Width37.5 mm
Height68 mm
Length287 mm
Continous duty100 % ED
SurfaceNatural, anodised
Holding force5000 N
Counterplate length200 mm
Counterplate width27 mm
Counterplate length60 mm
Accessories/Individual parts

Order number
Product
Mounting bracket model 828-7
828-7--------00Mounting bracket model 828-7
For flush-surface mounted doors; adjustable; L-bracket
Mounting kit
828-6--------00Mounting kit
For flush-surface mounted doors; adjustable; Z-bracket and lid
Matching fitting bracket 828-5
828-5--------44Matching fitting bracket 828-5
For 828-2; aluminium colour anodised
