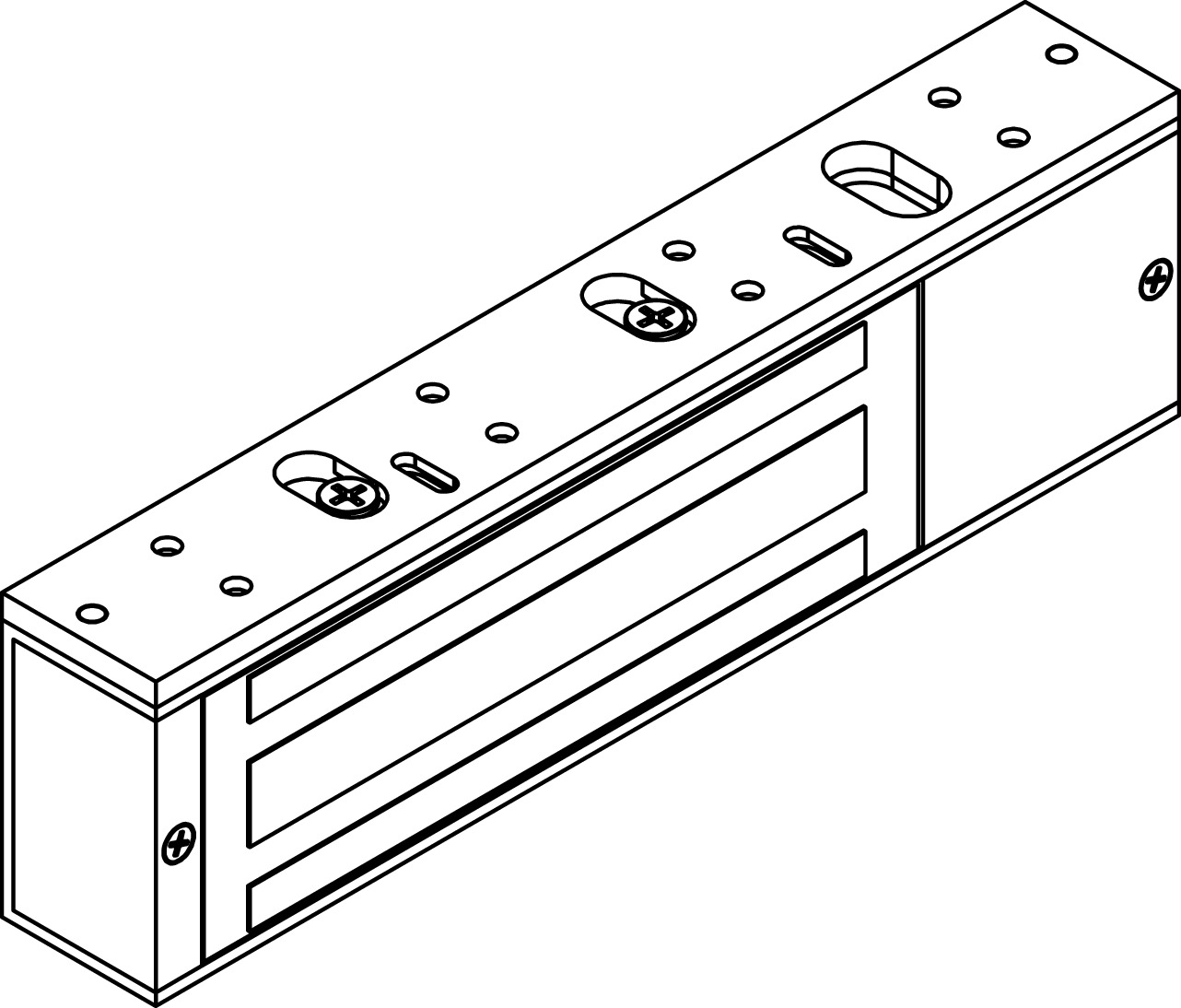

Maxi-magnet

Product description

Due to their relatively high holding force maxi-magnets are an ideal solution for locking of normal sized and bigger doors.

Scope of delivery

  • 1 unit maxi-magnet with counterplate

Note

  • Holding forces of holding magnets may vary due to material-related fluctuations
Technical data
Input operating voltage12/24 VDC
Current consumption at 12 V DC 505 mA
Current consumption at 24 V DC 260 mA
Mounting methodSurface mounting
Holding force1200 lbs
MaterialAluminium housing surface
Operating temperature range-10 °C to +55 °C
Variants that can be ordered
Order number
Description
MAG-1200SM-----1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation
MAG-1200SM----H1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation, hall-sensor
MAG-1200SM---TH1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation, hall-sensor, timer
MAG-1200SM-UL-H1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation, hall-sensor, UL-certification
