Maxi-magnet

1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation, hall-sensor, UL-certification

  • ArtNo: MAG-1200SM-UL-H
  • EAN: 4042203792012

Product description

Due to their relatively high holding force maxi-magnets are an ideal solution for locking of normal sized and bigger doors.

Scope of delivery

  • 1 unit maxi-magnet with counterplate

Note

  • Holding forces of holding magnets may vary due to material-related fluctuations
Technical data
Input operating voltage12/24 VDC
Current consumption at 12 V DC 505 mA
Current consumption at 24 V DC 260 mA

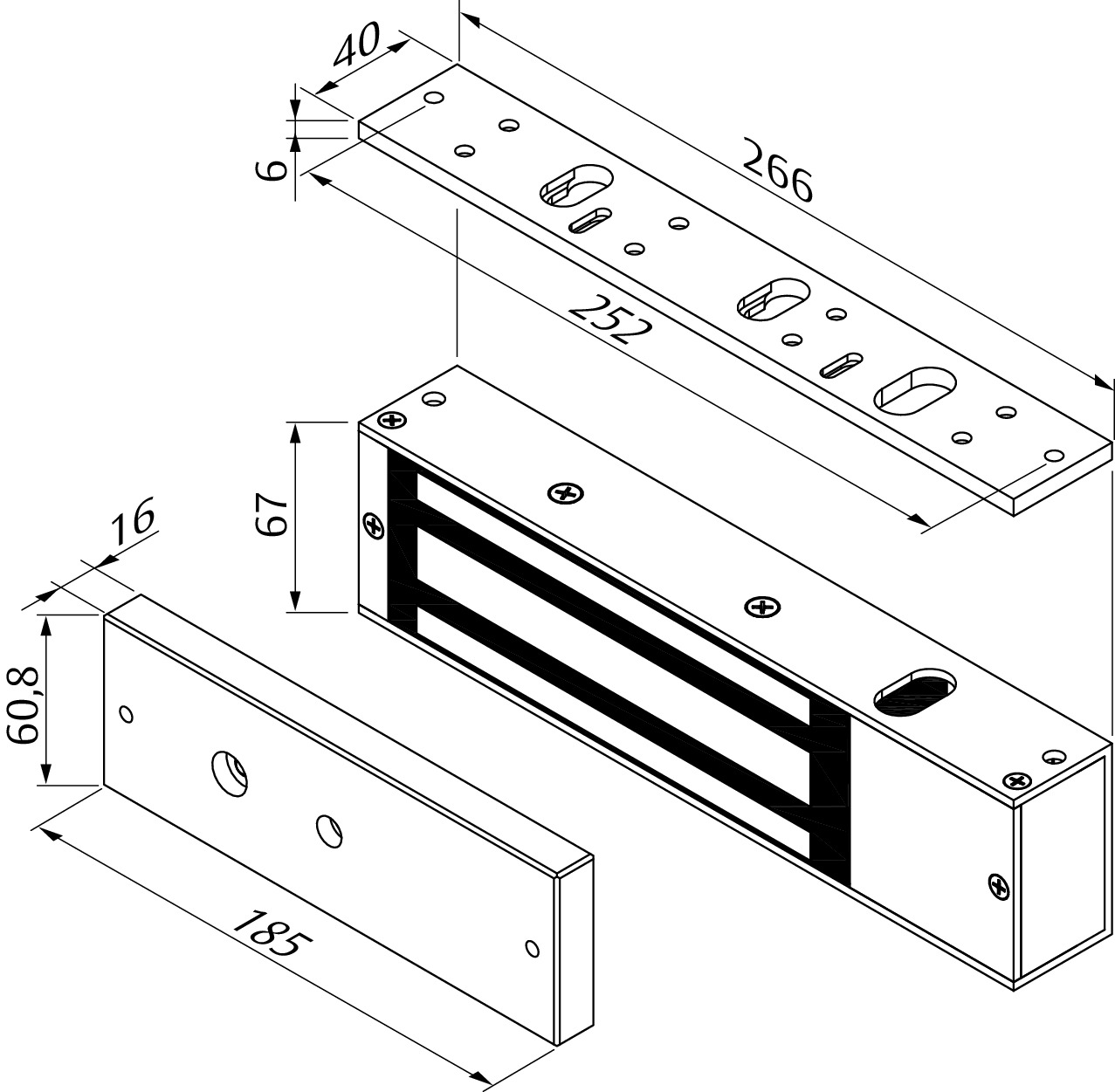

Length266 mm
Width67 mm
Depth40 mm
Counterplate length185 mm
Counterplate width60.8 mm
Counter plate depth16 mm
Mounting methodSurface mounting
MaterialAluminium housing surface
Operating temperature range-10 °C to +55 °C
Hall-sensorYes
UL-certificationyes
Holding force1200 lbs
