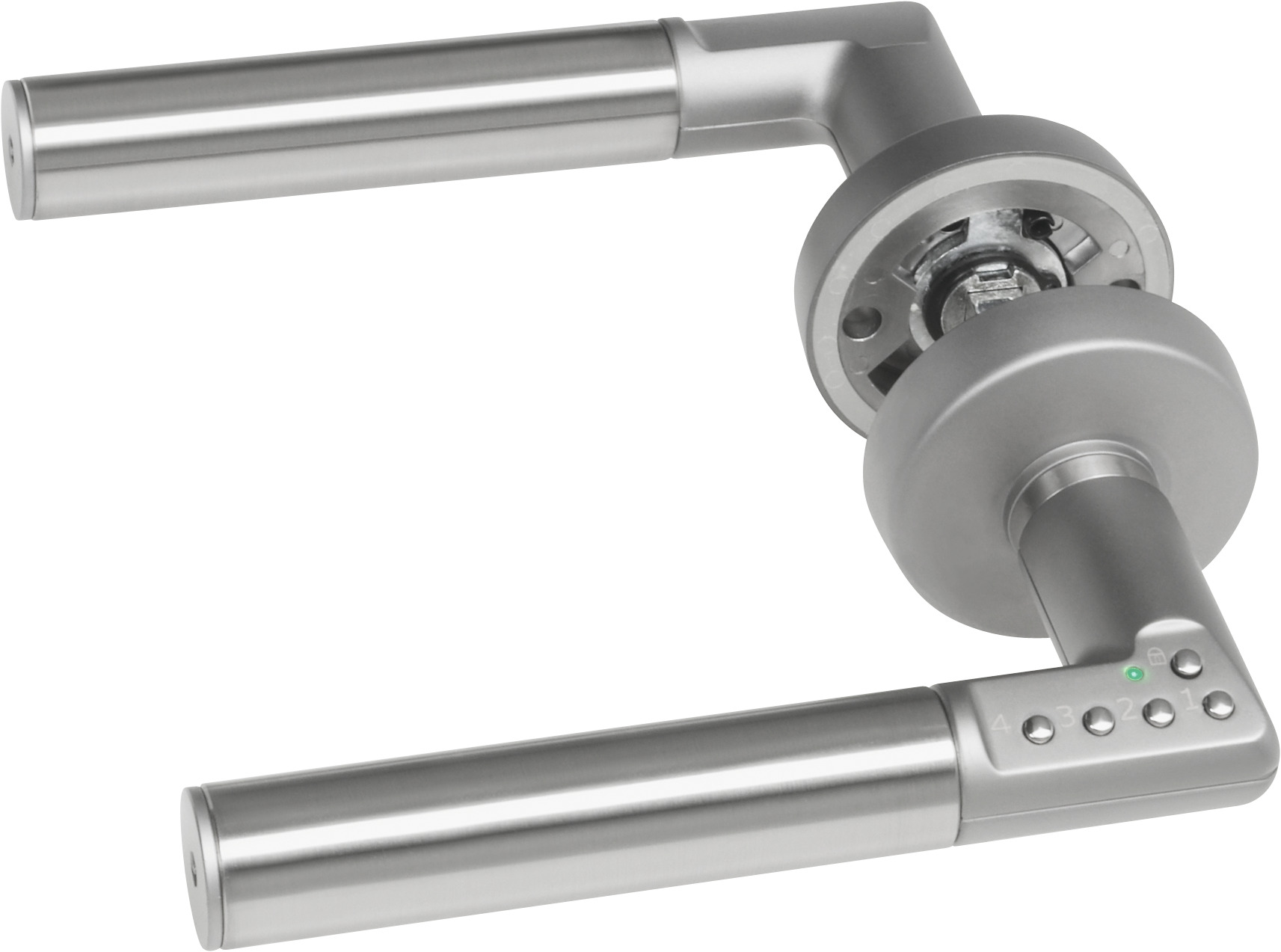

Code Handle®
Matt, version A
Product description
Accessories are key roses in a Euro profile and warded version.
Overview of Advantages
- Easy retrofit to interior doors (8 mm spindle) without wiring
- Universal usage in door leafs 35 – 80 mm thick
- Easy to operate, guided by optical and audible signals
- 1 master/programming code (6-digit code)
- 9 programming codes (4 to 6 digit code)
- If a user enters a wrong code five times, Code Handle® is blocked for 3 minutes
- In combination with panic lock: Panic function – door can always be opened from the inside
- Power supply for about 30,000 locking cycles using 2 x 3V batteries
- Locking can be switched between automatic and manual operation
- Permanent opening function
- With integrated handle return spring
Scope of delivery
- 1 door fitting and mounting material
Note
- Universal usage in door leafs 35 – 80 mm thick
- Accessories are key roses in a Euro profile and warded version.
| Power supply | 2 x lithium 3 V (CR2) |
| Battery life | > 30,000 cycles |
| Installation | Interior doors |
| Access | 4 to 6 digit code |
| signalisation | Display via LED (red, green, orange) |
| signalisation | Audible signal transmitter (adjustable) |
| spindle | 8 mm |
| Door leaf thickness | 35 - 80 mm |
| Surface | Zinc die-cast and stainless steel (on the handle) |
| Handle | L-shaped |
| Permanent release | Yes |
| Version | A |
| | Order number | Product |
|---|---|---|
 | 492----1-----00 | key rosette Matt, Euro Profile (2 units) |
 | 492----2-----00 | key rosette matt, Tumbler key (2 units) |
 | 505ZB-BATT---00 | Electronic cylinder replacement battery C100 |
