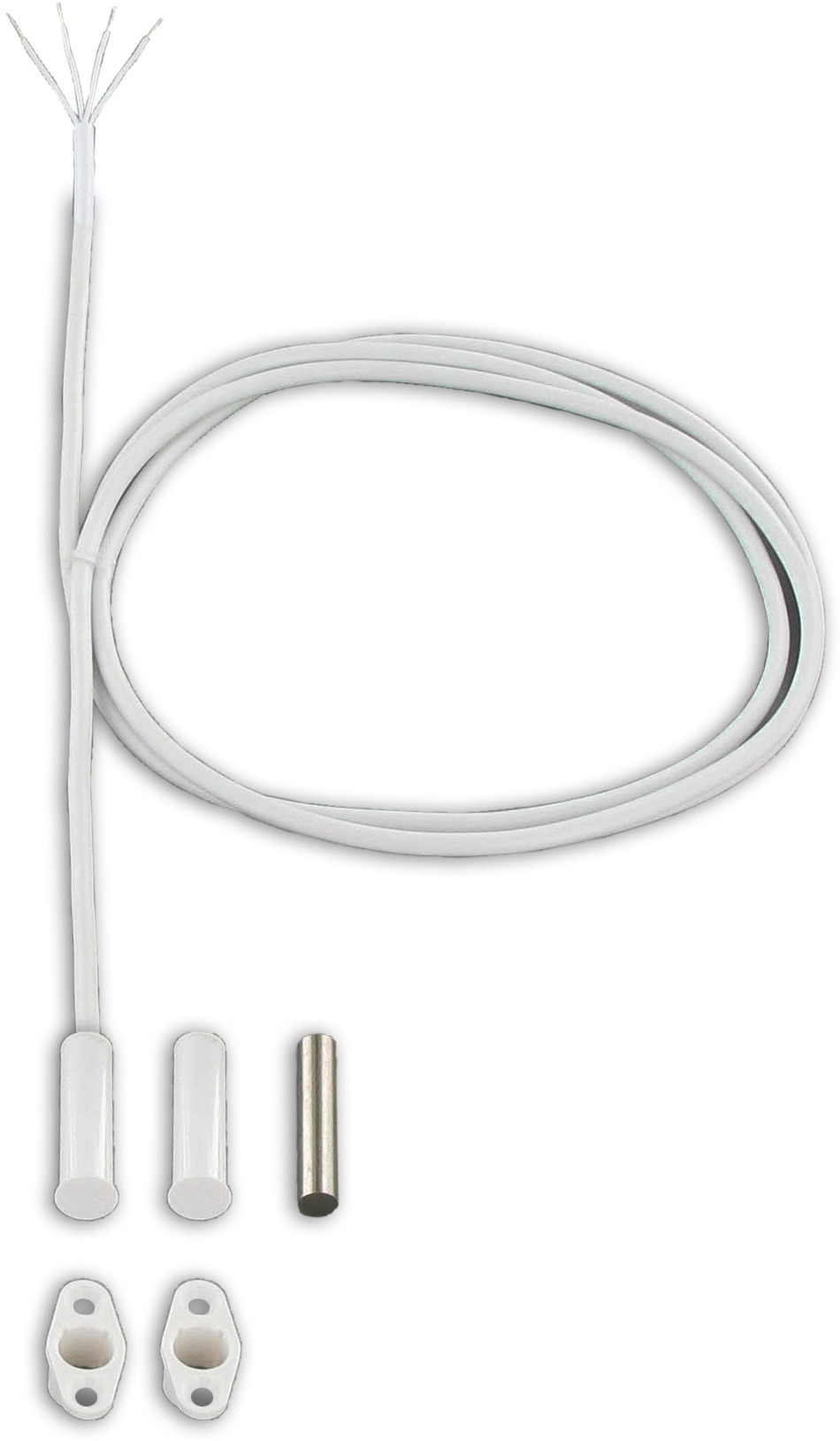

Round reed contact with flange

VDS class B, 6 m cable white

  • ArtNo: 10210-6------10
  • EAN: 4042203694989

Product description

Suitable for mortise fitting in aluminium or wood doors and windows.

Technical data
Max. contact load capacity6 W
Input operating voltagemax. 40 VDC
Max. switching currentmax. 0.5 A; observe the max. contact load capacity!
Contact typeNormal open
Max. switching interval16 mm
VdS classClass B
Class of protectionIP 67

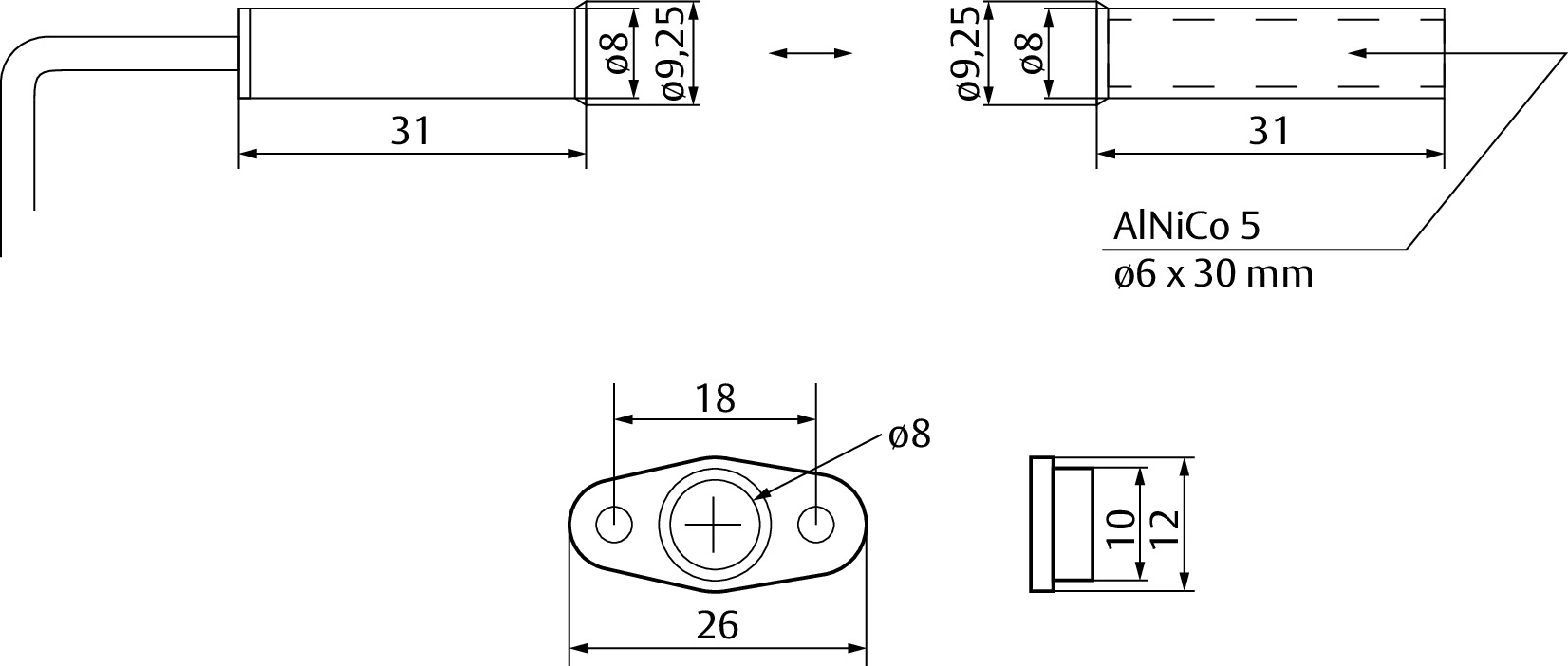

Dimension∅ 8 x 31 mm
Connection cable length6 m
Number of wires4 wire
ColourWhite
Material housingPlastic
Operating temperature range-40 °C to +70 °C
