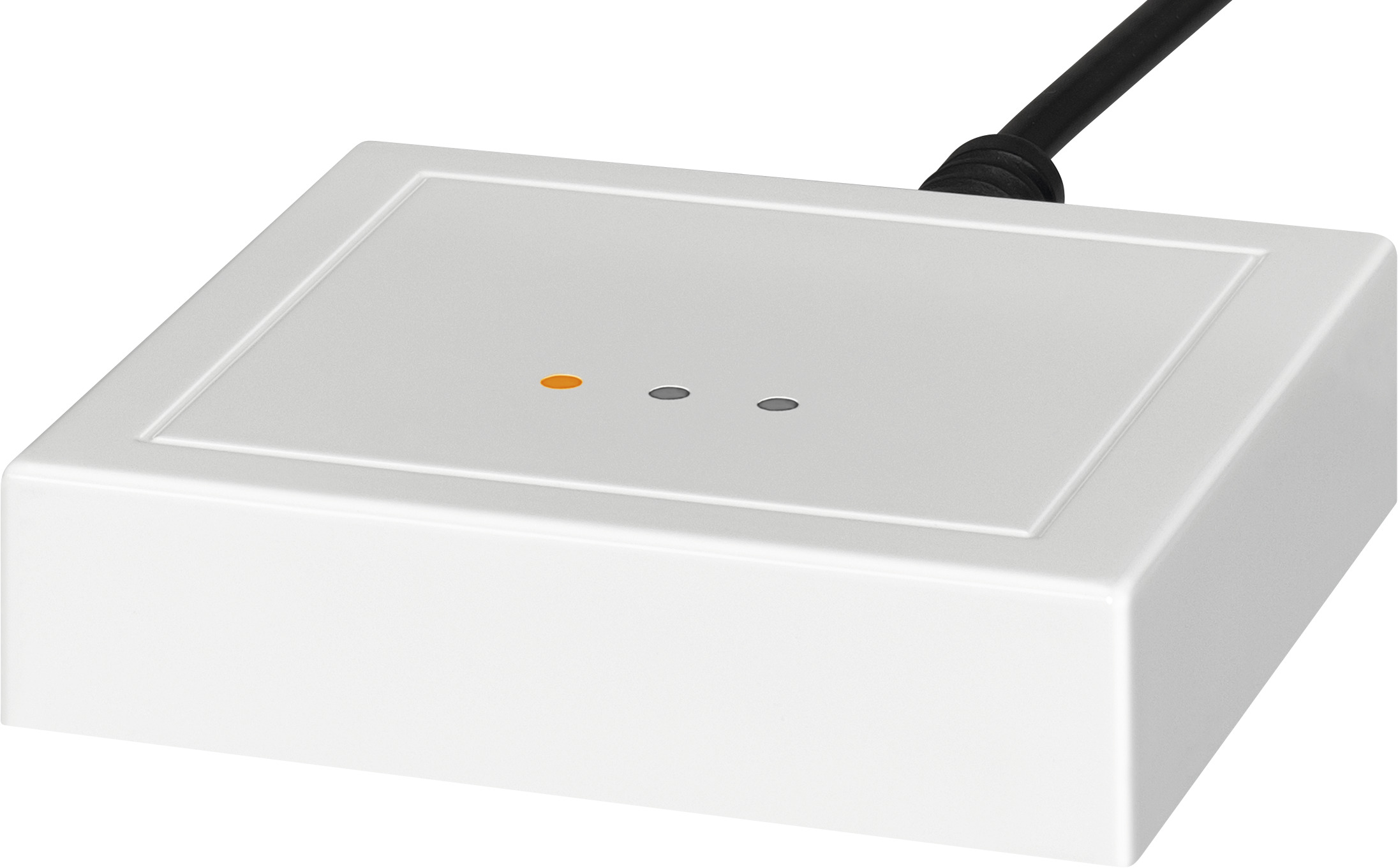

SCALA net desktop coder
Product description
The SCALA net desktop coder can be used to code identification cards easily via the SCALA net EAC system.
The SCALA net write/read technology is innovative and secure, yet incredibly flexible.
Identification cards can be created and written as required for both online and offline areas in the SCALA net EAC system. Customer-specific and individual system identifiers are programmed for the online area. The relevant system and access data such as encryption, system number, doors and time schedules are stored on identification cards for their use with offline components.
The SCALA net desktop coder can read and write on MIFARE® and LEGIC® identification cards.
Thanks to its compact design, the SCALA net desktop coder can be set up and operated at a PC workstation. It connects to the computer and the power supply via USB cable.
The SCALA net desktop coder can be used anywhere you wish since it communicates directly with the server. This means the device can be used at any PC workstation.
The LED signal provides the user with information on the operating status and the status of identification card coding.
An installation wizard guides users through the menu as they install the SCALA net desktop coder. This makes installation easier and also excludes errors during installation.
Overview of Advantages
- A device for MIFARE Classic®/DESFire®, LEGIC® Advant and Prime
- Can be used anywhere you wish
- LED signals to indicate the operating status and coder status
- Connection via USB
- Easy installation thanks to installation wizard
- Can be used with SCALA net
Scope of delivery
- SCALA net desktop coder with USB connecting cable
Note
- This reader can only be used in SCALA offline and SCALA net
Input operating voltage | 12 V DC |
Approvals | CE |
Dimension | 92 x 92 x 22.5 mm (W x H x D) |
Connection | Via USB connection |
Material housing | Plastic |
Colour | White |
Operating temperature range | 0 to +70 °C |
Status | 1 x single-color LED, 1 x dual-color LED, 1 x RGB LED |
RFID Technologies (Based on reader type) | MIFARE® Classic® / MIFARE® DESFire® EV1/EV3; LEGIC® (Advant, Prime, ISO/IEC14443 UID, ISO/IEC15693 UID) |
Communication interfaces | USB interface with the computer workstation |
