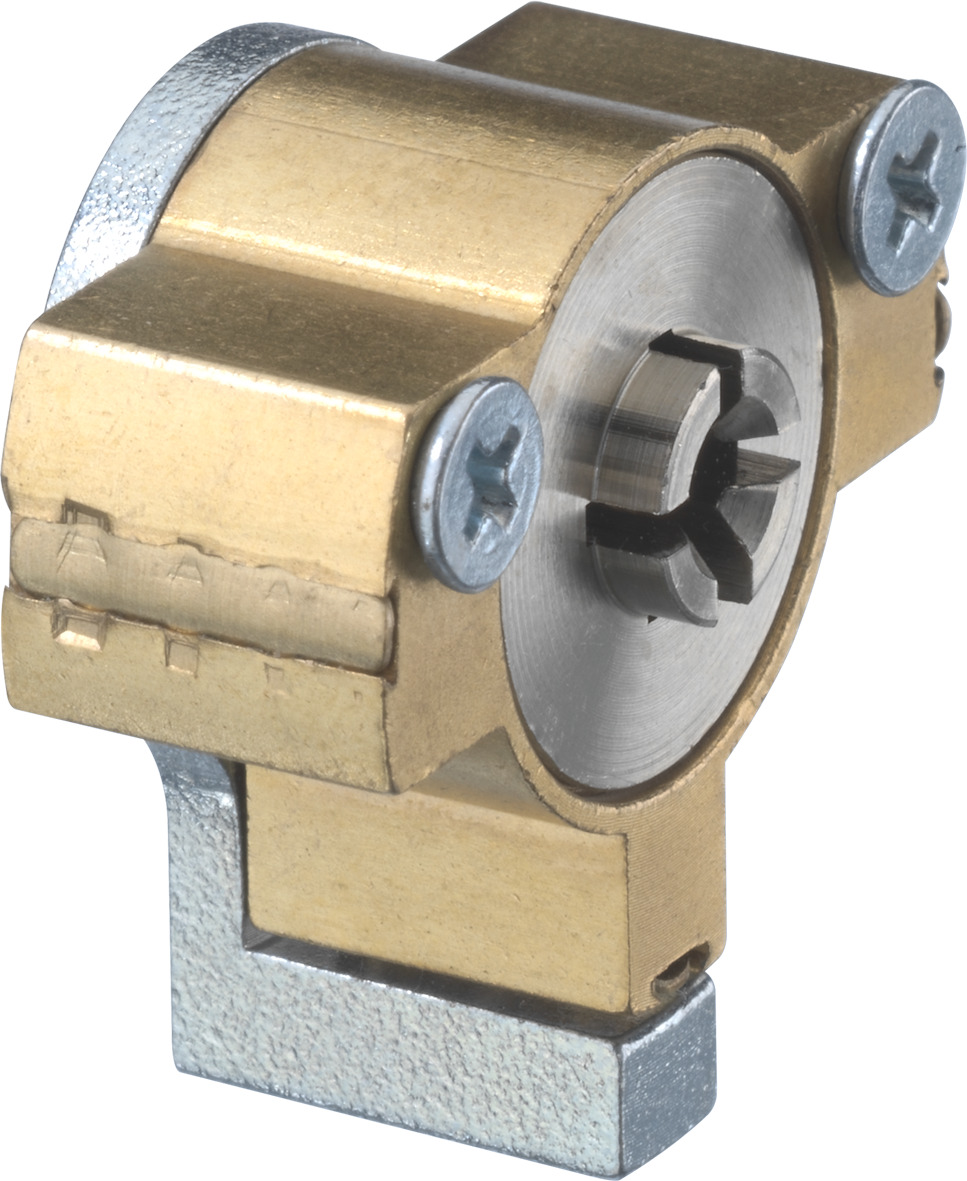

Security lock with cross profile 3191

9-pin cross profile security lock

Product description

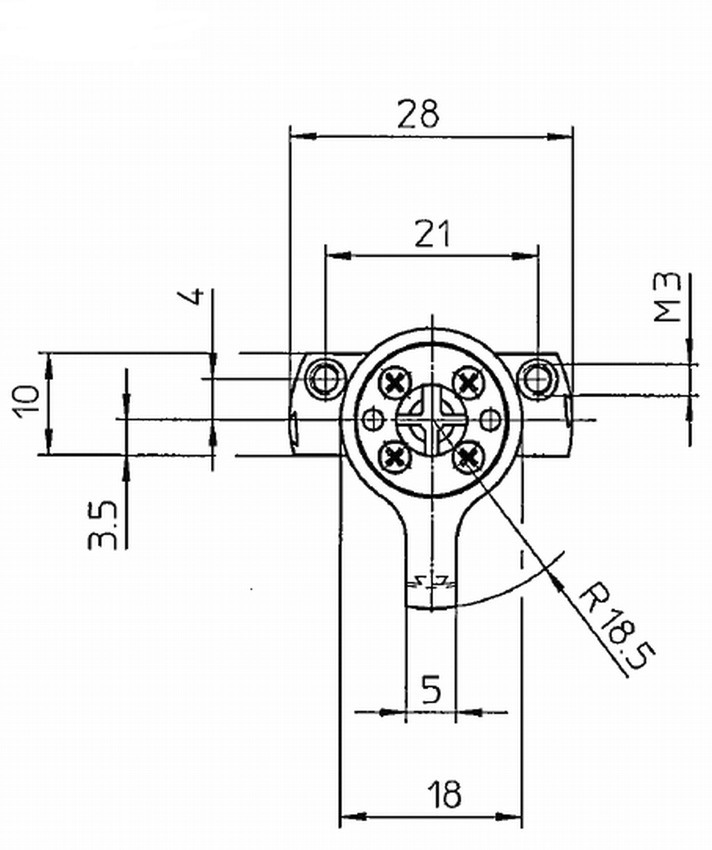

  • Cam radius 18.5 mm
  • Height 14 mm
  • Opens on right and left
  • Lockable from both sides
  • Key withdrawal possible only in locked position
  • Locking path 360°
  • Brass housing, steel cam
  • Fixing with 2 screws
  • Cross profile keys are available in different lengths (SLL=) from 70 mm to 130 mm
  • Available as S2 profile with standard locking and SE1K profile with restricted locking with security card
  • Available as keyed different or key aliked

Scope of delivery

  • 1 security lock
  • 2 cross profile keys, length 100 mm (C)
Variants that can be ordered
Article numberPR=AA=
3191 S2NML
S3SP
SE1KSP
