Switch cylinder VERSO®CLIQ V511

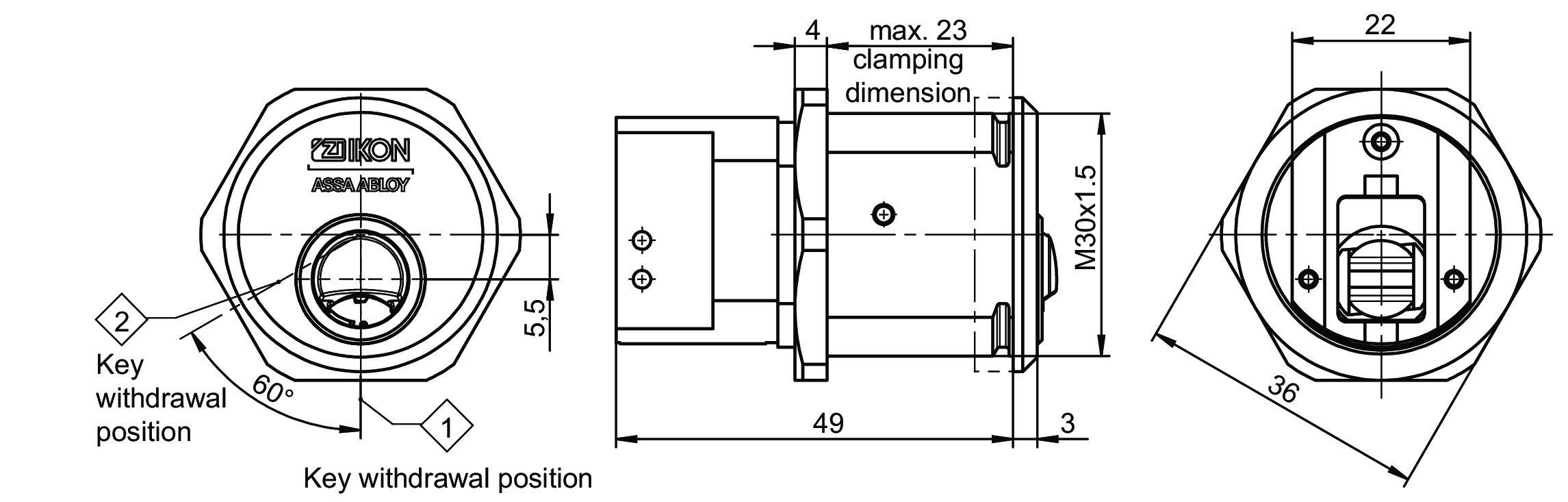

30 mm Diameter, laterally flattened to 22 mm -without key-

Product description

  • Available as mechanical or electromechanical version (V=)
  • Brass cylinder
  • Standard finish, satin nickel-plated (OF=MV)
  • Switching cylinder with 2 key withdrawal positions
  • Two microswitches F4T 7-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
  • Key rotation 60°
  • A rotation actuates a switch device (e.g. underground car parks, etc.).
  • Tumbler elements with special wear-resistant alloy
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

  • 1 switch cylinder
Variants that can be ordered
Article numberOF=V=
V511 MV M
MV E1
MV E2
Special equipment

Special identification marking

DescriptionInfo
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)per cylinder

Explosion protection

ATEX=DescriptionInfo
II 2G Ex ib IIC T4 GbLocking cylinders for Zone 1 hazardous areasper cylinder

Special finish

OF=Area of applicationInfo
MV For profile and locking lever cylindersper cylinder
MC For profile and locking lever cylindersper cylinder
MP For profile and locking lever cylindersper cylinder
MG For profile and locking lever cylindersper cylinder

Version

V2=DescriptionInfo
OHNE AUDITCylinder without events list, frontal marking with symbol "§"per cylinder
