Push-in cylinder - system TK5 5056

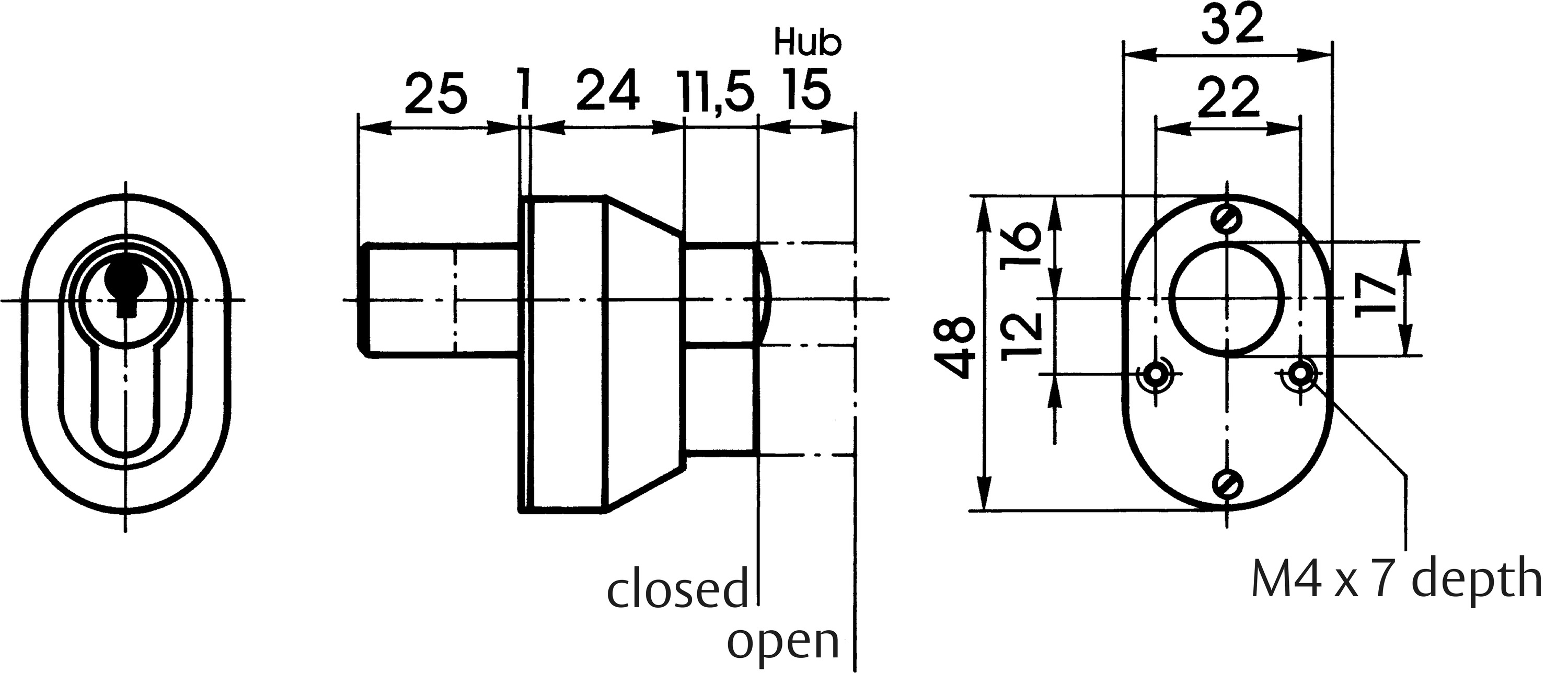

Product image Product description
- 5 pin tumblers
- Standard finish, satin nickel-plated (OF=MV)
- Other surfaces: brass, mat brushed (OF=MG), polished brass (OF=MP)
- Drilling protection (AB=), blocking wave (SW=), additional lateral scanning, security card depending on profile (PR=)
- Spherical cylinder core head with reinforced key guide
- Core pins made of special wear-resistant bronze
- Locking in both end positions
- Locking stroke 15 mm
- Axially extended round bolt at rear with 17 mm diameter
- Extends 10 mm at rear above cover plate in home position
- Fixing at rear with M4 x 7 cylinder screws
- For actuating circuits and controls, withdrawal positions actuated by pressure
- Key with round metal head
- Available for individual lockings and locking systems
Scope of delivery
- 1 pressure cylinder
- 2 nickel silver keys
