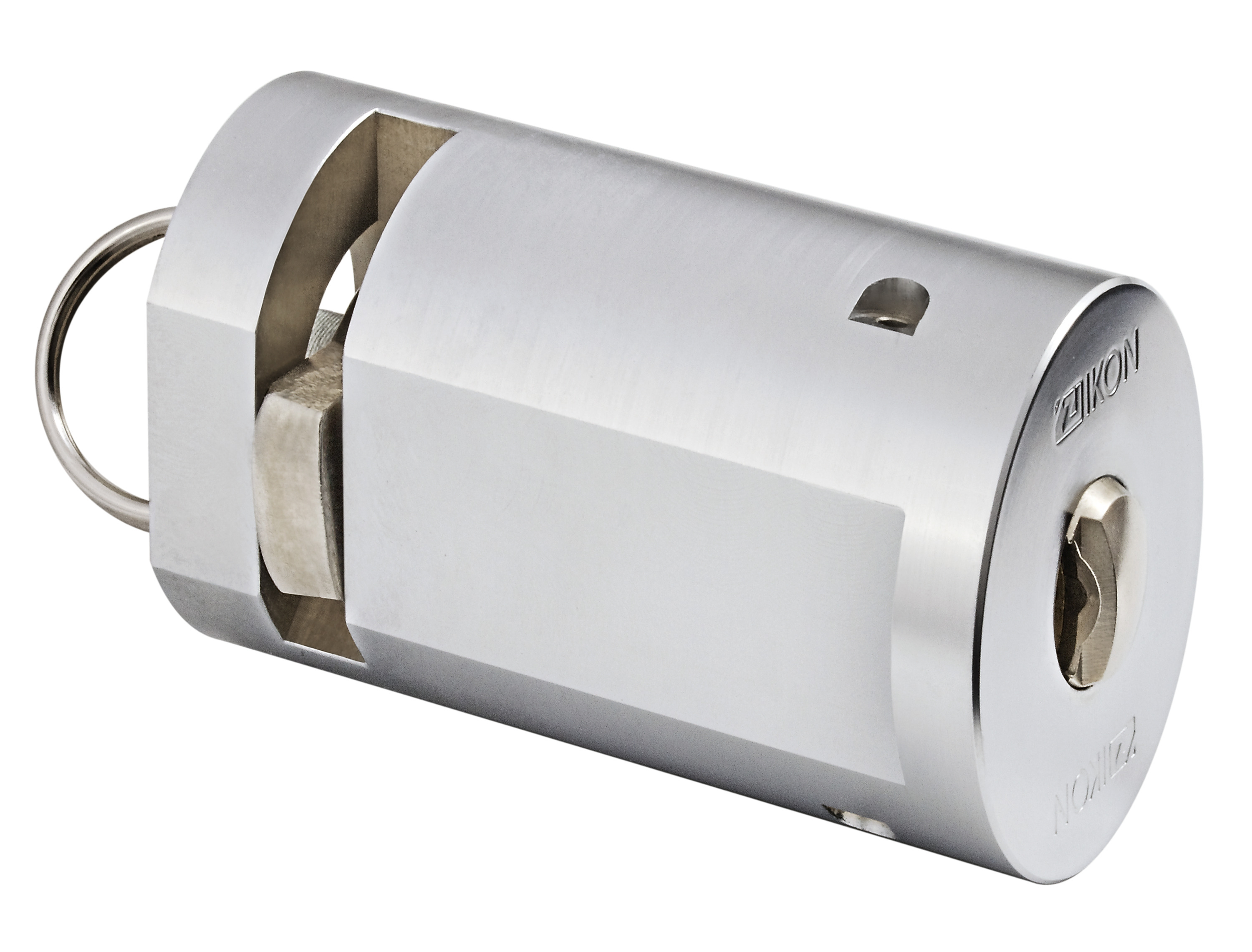

Special cylinder for key-safe tube - VERSO®CLIQ V549

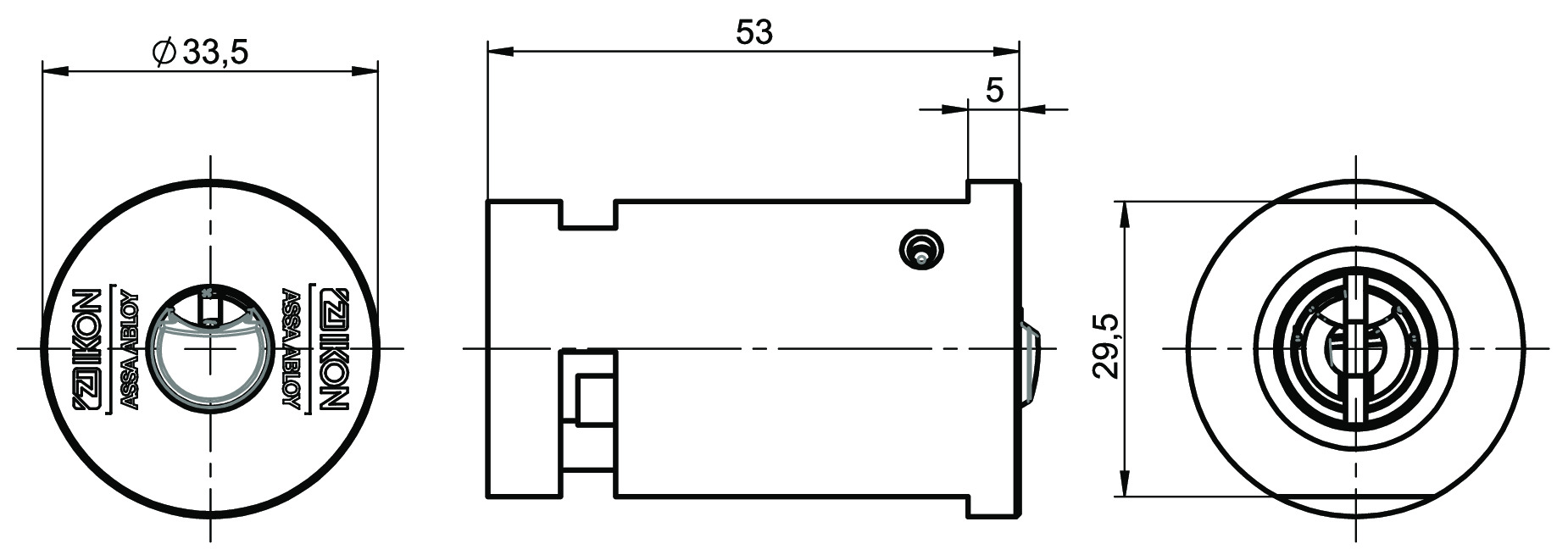

33.5 mm diameter
Product description
- Available as mechanical or electromechanical version (V=)
- Standard finish, matt chrome-plated (OF=MC)
- Cylinder material: hardened and tempered steel
- Standard anti drilling protection (AB=2)
- Tumbler elements with special wear-resistant alloy
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 special cylinder
| Article number | OF= | V= |
|---|---|---|
| V549 | MC | M |
| MC | E1 | |
| MC | E2 |
.webp "Maintenance spray")
Special identification marking
| Description | Info |
|---|---|
| Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per cylinder |
Explosion protection
| ATEX= | Description | Info |
|---|---|---|
| II 2G Ex ib IIC T4 Gb | Locking cylinders for Zone 1 hazardous areas | per cylinder |
Drilling protection
| AB= | Area of application | Info |
|---|---|---|
| 2 | For profile knob, half and special cylinders | per cylinder |
Special finish
| OF= | Area of application | Info |
|---|---|---|
| MC | For profile and locking lever cylinders | per cylinder |
Version
| V2= | Description | Info |
|---|---|---|
| OHNE AUDIT | Cylinder without events list, frontal marking with symbol "§" | per cylinder |
