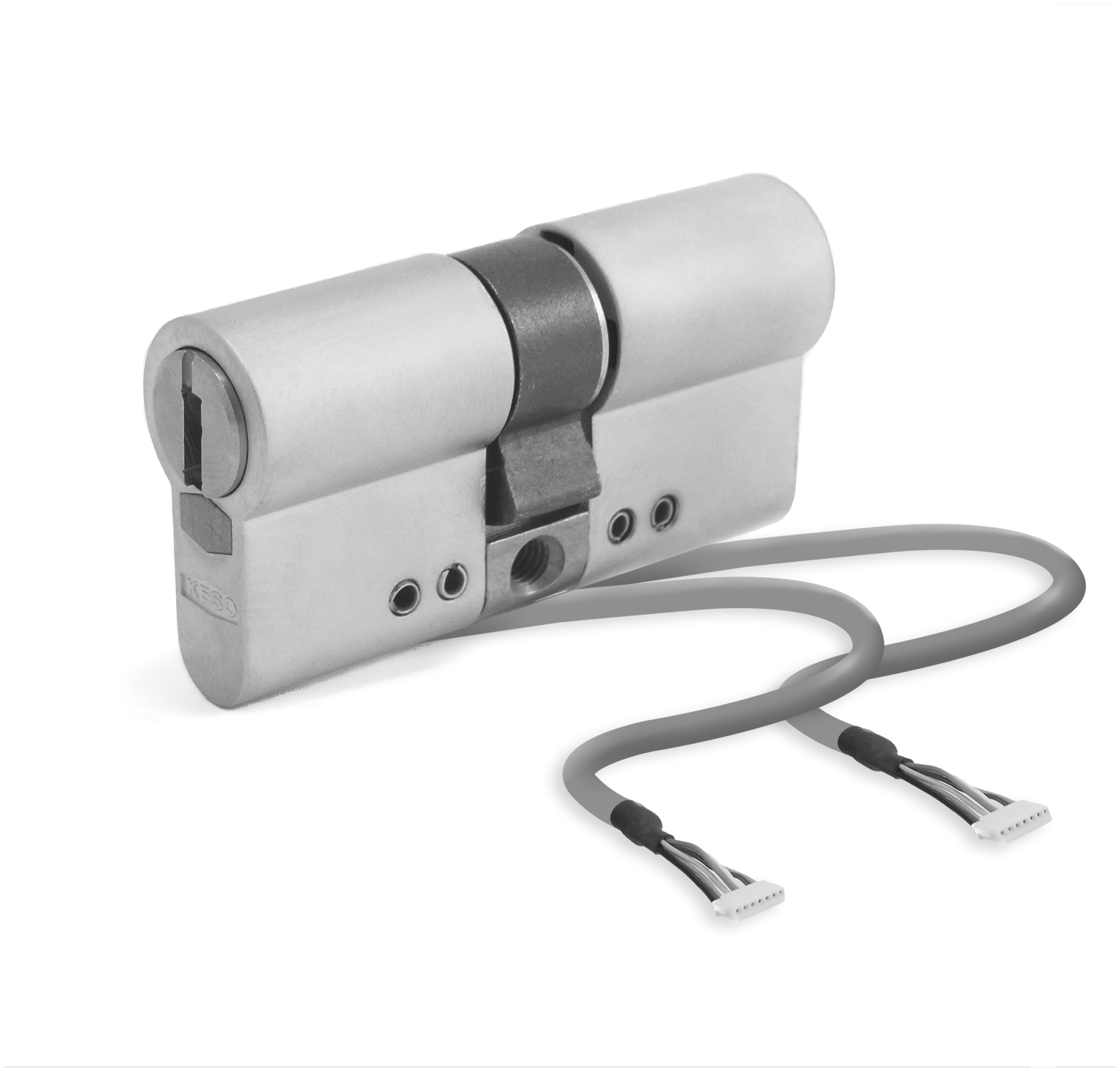

Double cylinder housing

Overview of Advantages

• Material: Sidra metal
• Protection rating: IP53
• Power supply via external electronics
• Reader method: contact-free
• Temperature range: -20 to +60°
• Humidity: 0 to 95%, non-condensing
• Interface: KAPI
• Operability: Online/Offline/NOK
• VdS B+
• ATEX capable
• RFID: EM4450, MIFARE DESFIRE, Legic Advant

Product description

• Mechatronic double cylinder applications where a mechatronic authorisation should take place from inside and outside with various authorisations under certain circumstances.
• Mechatronic authorisation takes place via the separate electronics (online, offline, home).
• The optional drilling protection corresponds to class VdS B+.

Scope of delivery

• 1 double cylinder
• 1 fixing screw

Note

• Requires electronics
