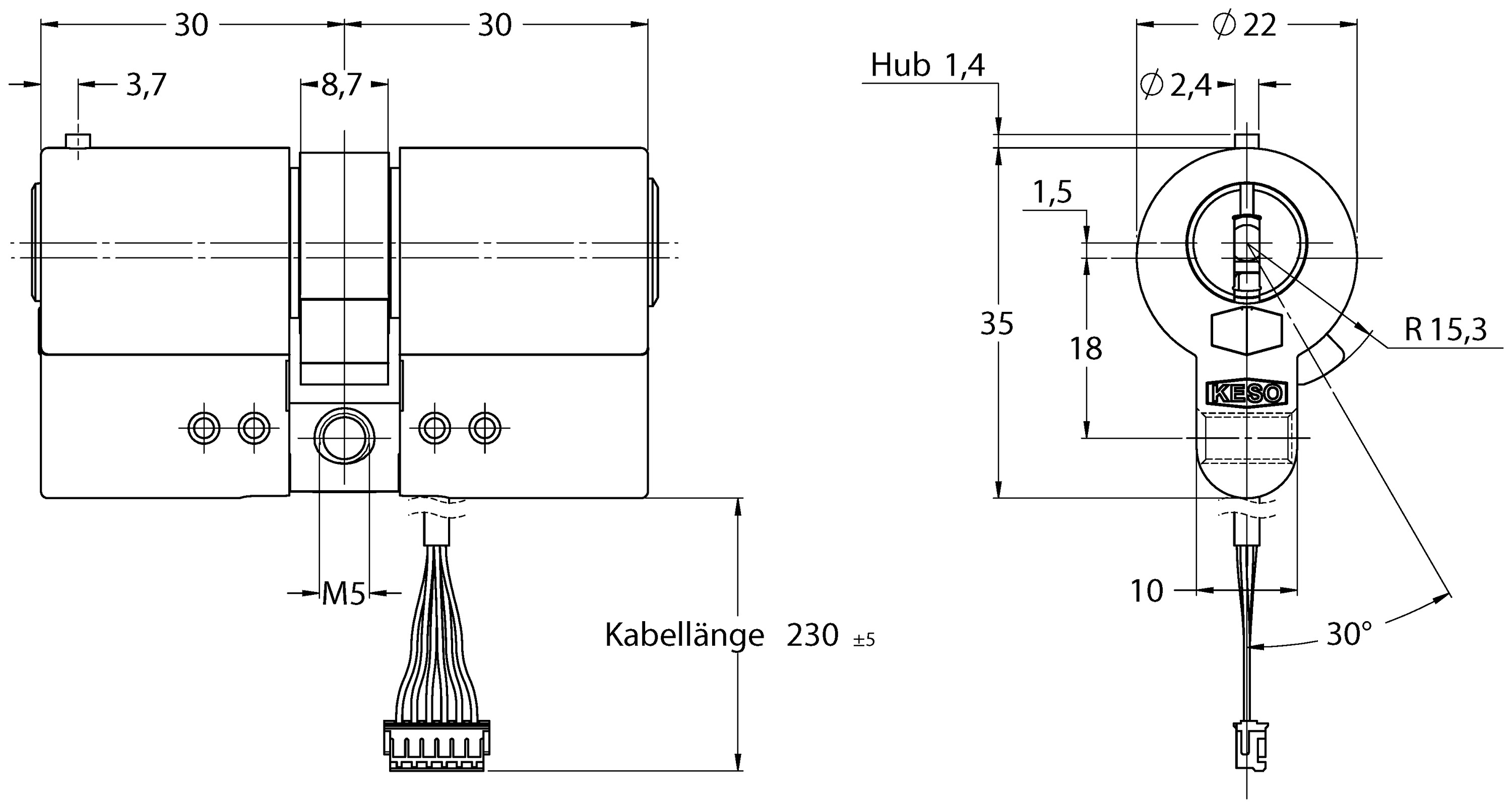

Double cylinder housing

with contact on outer side, Euroswiss profile

Overview of Advantages

  • Material: Sidra metal
  • Protection rating: IP53
  • Power supply via external electronics
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 0 to 95%, non-condensing
  • Interface: KAPI
  • Operability: Online/Offline/NOK
  • VdS B+
  • ATEX capable
  • RFID: EM4450, MIFARE DESFIRE, Legic Advant

Product description

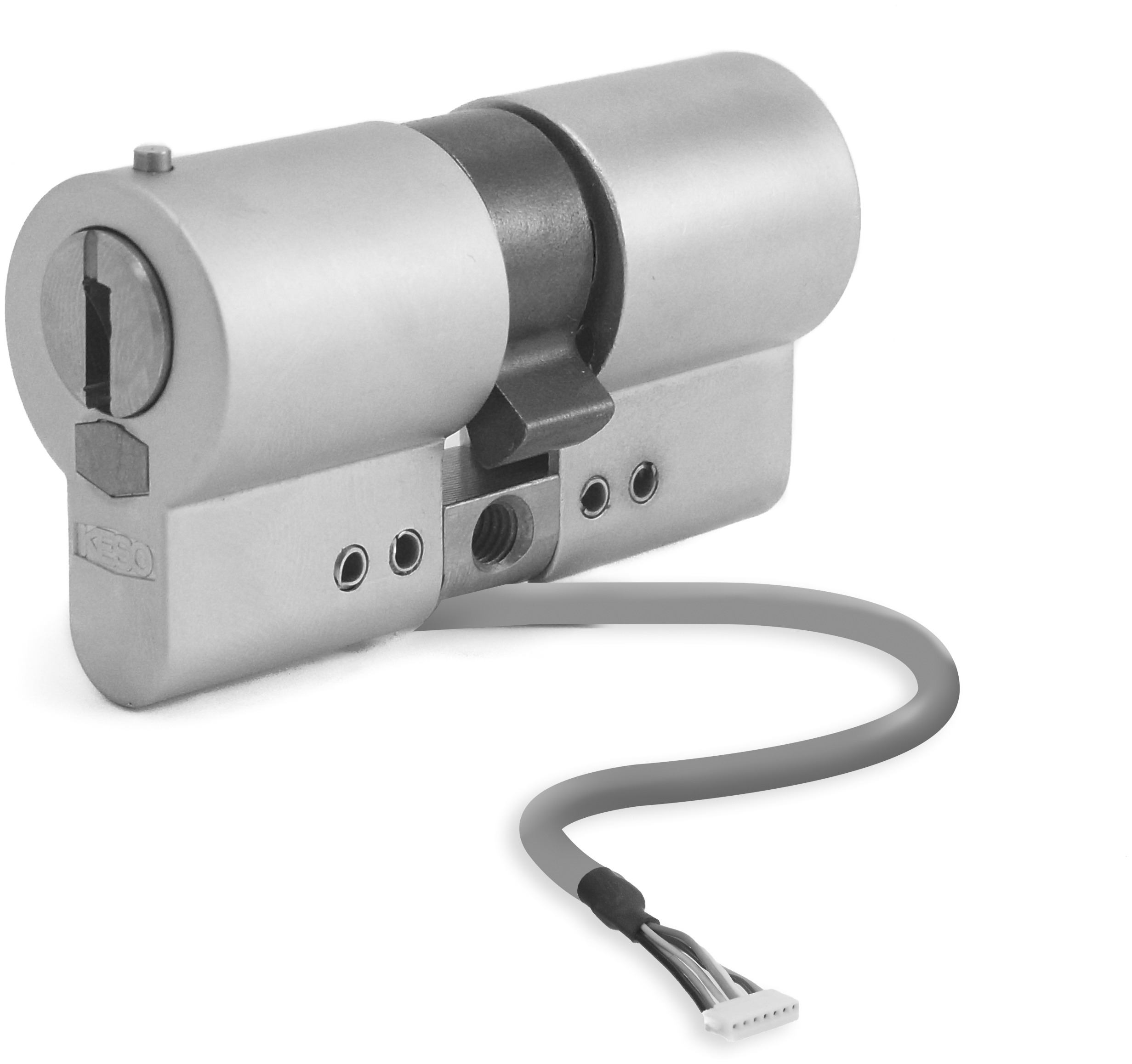

  • Mechatronic double cylinder with one-sided contact pin on the outer/electronics side for use with lift doors.
  • The contact pin is pressed upwards when the key is inserted.
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • The optional drilling protection corresponds to class VdS B+.
  • The use of contact pin cylinders is restricted with existing systems. Clarify feasibility beforehand.

Scope of delivery

  • 1 double cylinder
  • 1 Fastening screw

Note

  • Requires electronics
Product numbers
SystemProduktnummer
212+11.54C
223+21.54C
230+31.54C
233+41.54C
