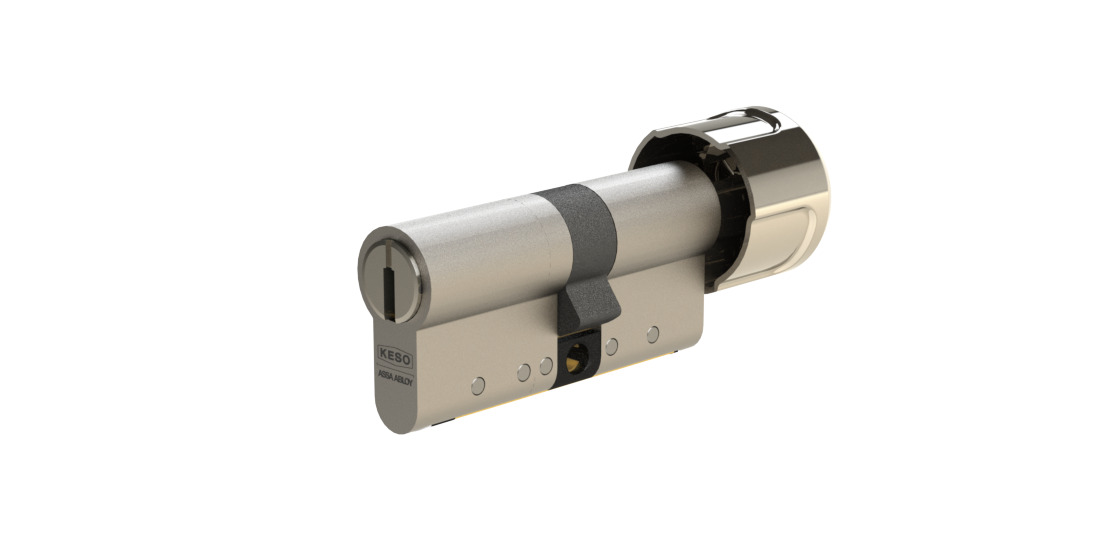

Thumbturn cylinder _1.D19
Overview of Advantages
- Standard colour: nickel-plated
- Standard length: 35/30 mm
- Thumb turn on one side
- Web made of brass
- With hardened tumblers HRC60
- Modular
- VdS B, 2386: 2012-07
Product description
- The rotary knob cylinder with Europrofile for mortise locks and surface-mounted locks of all kinds is mainly used in hotels, hospitals, homes for the elderly and care homes.
Scope of delivery
- 1 rotary knob cylinder
- 1 fixing screw M5
| 1: System | 8: 8000Ω² |
| 2: Security level | D: VdS B |
| 3: Length A | 35: 35 mm XX: 5 mm Schritte (see appendix) |
| 4: Security level A | D: VdS B |
| 5: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 6: Corrosion protection | A: EN1670 Kl. 3 B: increased corrosion protection |
| 7: Cylinder colour A | 04: gold decor 05: bronzed light 38: Nickel matt 56: Nickel black |
| 8: Thumbturn colour | 2: nickel plated 4: gold decor 5: bronzed light 38: Nickel matt |
| 9: | 7: black |
| 10: Thumbturn B | E076: 30 mm standard E052: double wing |
| 11: Function A | --: none Ba: Building System |
| 12: Cylinder colour B | 4: gold decor 5: bronzed light 38: Nickel matt 56: Nickel black |
| 13: Cam type | KQ: Eurokey position Q SM: Standard position M SQ: Standard position Q KM: Eurokey position M MT: Multilock MS: Multilock narrow SP: Spider gear wheel BL: Biffar left BR: Biffar right SC: Standard position C NM: Standard position M narrow NQ: Standard position Q narrow |
