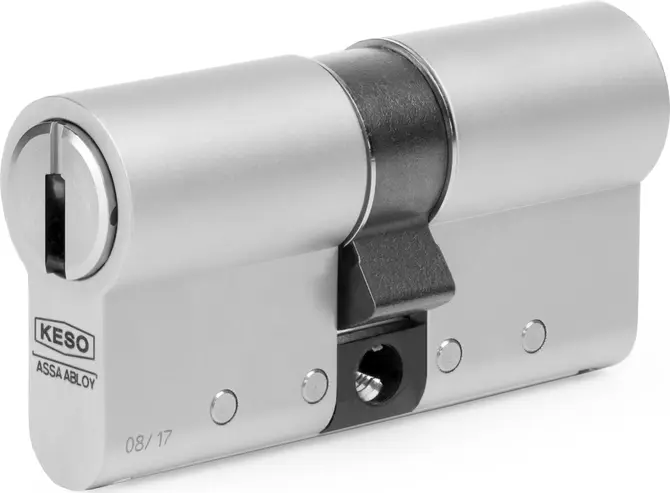

Double cylinder _1.D15
with high anti-drilling protection
Overview of Advantages
- Standard colour: nickel-plated
- Standard length: 30/30 mm
- Web made of brass
- With hardened tumblers HRC60
- Drilling_protection
- Modular
- VdS B, 2386: 2012-07
Product description
- Double cylinder in Euro profile with high drilling protection for mortise locks and surface-mounted locks of all types.
Scope of delivery
- 1 double cylinder
- 1 fixing screw M5

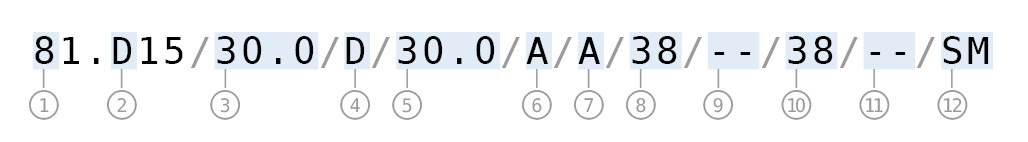

| 1: System | 8: 8000Ω² |
| 2: Security level | D: VdS B |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Security level A | D: VdS B |
| 5: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 6: Security level B | A: comparable EN1303:2015-08; WD C D: VdS B |
| 7: Corrosion protection | A: EN1670 Kl. 3 B: increased corrosion protection |
| 8: Cylinder colour A | 04: gold decor 05: bronzed light 38: Nickel matt 56: Nickel black |
| 9: Function A | --: none |
| 10: Cylinder colour B | 4: gold decor 5: bronzed light 38: Nickel matt 56: Nickel black |
| 11: Function B | --: none |
| 12: Cam type | SM: Standard position M SQ: Standard position Q KM: Eurokey position M MT: Multilock MS: Multilock narrow SP: Spider gear wheel BL: Biffar left BR: Biffar right EM: Spain position M SC: Standard position C NC: Standard position C narrow NM: Standard position M narrow NQ: Standard position Q narrow |
