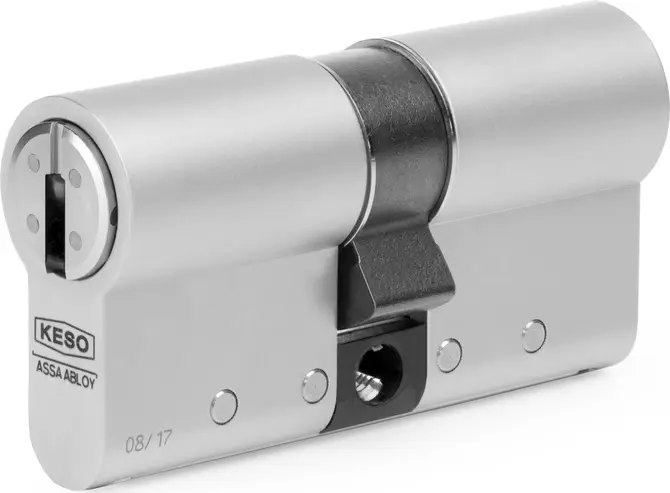

Double cylinder _1.E15

with pulling- and highest drilling protection

Overview of Advantages

  • Material: chrome nickel steel
  • Standard length: 30/30 mm
  • Chrome nickel steel web
  • With hardened tumblers HRC60
  • Drilling_protection
  • pulling protection
  • Modular
  • VdS BZ(+), 2386: 2012-07 suitable for arming systems

Product description

  • Double cylinder in Euro profile with drilling and pulling protection to the highest security requirements for mortise locks and surface-mounted locks of all types.

Scope of delivery

  • 1 double cylinder
  • 1 fixing screw M5
Special equipment

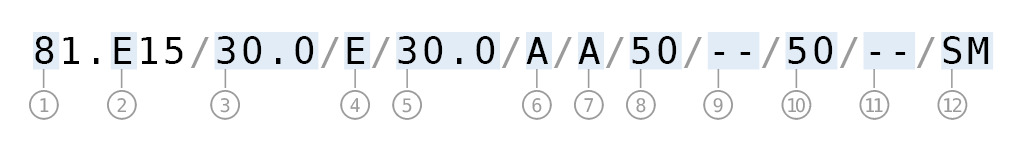

Artikelnummer
1: System8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelE: VdS BZ
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Security level AE: VdS BZ
5: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
6: Security level BA: comparable EN1303:2015-08; WD C

E: VdS BZ
7: Corrosion protectionA: EN1670 Kl. 3

B: increased corrosion protection

C: S02 according to VdS 2156-1 for BZ + in arming systems
8: Cylinder colour A50: chrome-steel matt

57: Chrome steel gold decor

58: Chrome steel bronzed light

59: Black chrome steel

60: Chrome steel gloss
9: Function A--: none
10: Cylinder colour B50: chrome-steel matt

57: Chrome steel gold decor

58: Chrome steel bronzed light

59: Black chrome steel

60: Chrome steel gloss
11: Function B--: none
12: Cam typeSM: Standard position M

SQ: Standard position Q

KM: Eurokey position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

EM: Spain position M

SC: Standard position C

NC: Standard position C narrow

NM: Standard position M narrow

NQ: Standard position Q narrow
