Half cylinder _1.B14

with pulling protection

Overview of Advantages

  • Material: hard alloyed brass
  • Standard length: 30/10 mm
  • with adjustable cams
  • Chrome nickel steel web
  • With hardened tumblers HRC60
  • pulling protection
  • Modular
  • EN1303: 2015 Resistance class D

Product description

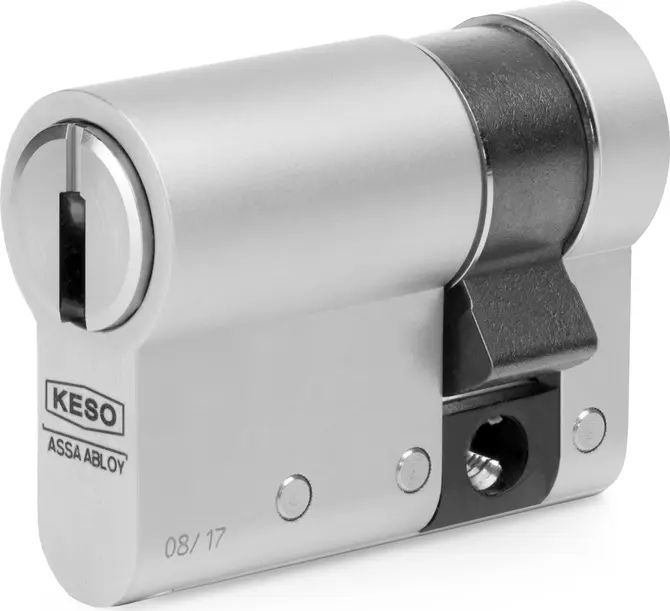

  • Half cylinder in Euro profile with pull protection and adjustable cam.

Scope of delivery

  • 1 Half cylinder
  • 1 fixing screw M5
Special equipment

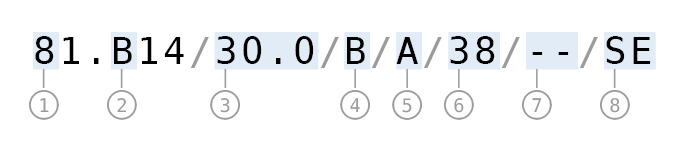

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²
2: Security levelB:
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Security level AB:
5: Corrosion protectionA: EN1670 Kl. 3
6: Cylinder colour A04: gold decor

05: bronzed light

38: Nickel matt

56: Nickel black
7: Function A--: none

Ba: Building System
8: Cam typeKE: adjustable Eurokey

SE: adjustable standard

SM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

NE: adjustable standard narrow

NM: Standard position M narrow

NQ: Standard position Q narrow
