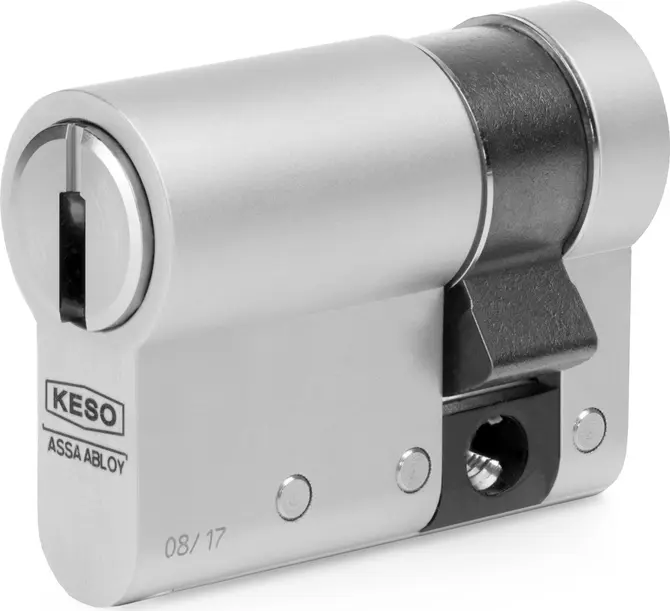

Half cylinder _1.C14

with increased anti-drilling protection

Overview of Advantages

  • Standard colour: nickel-plated
  • Standard length: 30/10 mm
  • with adjustable cams
  • Web made of brass
  • With hardened tumblers HRC60
  • Drilling_protection
  • Modular
  • VdS A, 2386: 2012-07

Product description

  • Half cylinder in Euro profile with increased drilling protection and adjustable cam.

Scope of delivery

  • 1 Half cylinder
  • 1 fixing screw M5
Special equipment

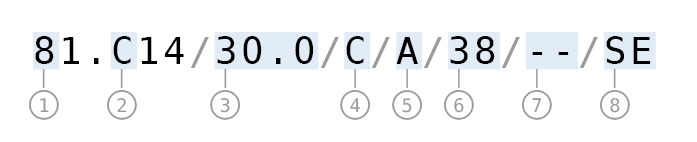

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

6: 6000FP2

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelC: VdS A
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Security level AC: VdS A
5: Corrosion protectionA: EN1670 Kl. 3
6: Cylinder colour A04: gold decor

05: bronzed light

38: Nickel matt

56: Nickel black
7: Function A--: none

Ba: Building System
8: Cam typeKE: adjustable Eurokey

SE: adjustable standard

SM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

NE: adjustable standard narrow

NM: Standard position M narrow

NQ: Standard position Q narrow
