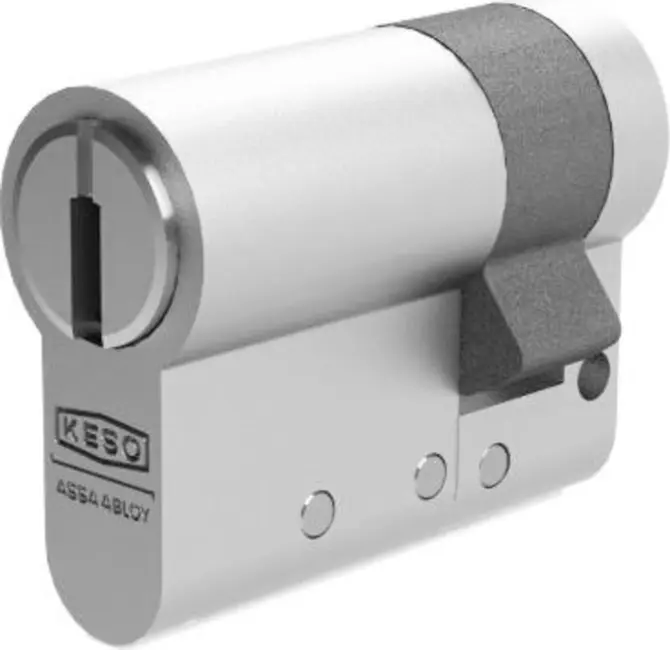

Half cylinder _1.A1P

With M4 threaded fastener

Overview of Advantages

  • Standard colour: nickel-plated
  • Standard length: 30/10 mm
  • Web at rear with 2 M4 threads
  • Adjustable cam
  • With hardened tumblers HRC60
  • Modular
  • EN1303: 2015-08

Product description

  • Half cylinder in Euro profile with M4 threaded fixing on the back.

Scope of delivery

  • 1 Half cylinder
  • 1 fixing screw M5
Special equipment

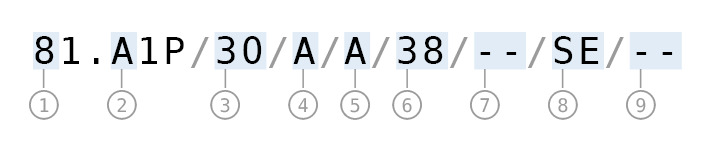

Artikelnummer
1: System8: 8000Ω²

4: 4000SΩ

C: 2500FP

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelA: comparable EN1303:2015-08; WD C
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Security level AA: comparable EN1303:2015-08; WD C
5: Corrosion protectionA: EN1670 Kl. 3
6: Cylinder colour A04: gold decor

05: bronzed light

38: Nickel matt

56: Nickel black
7: Function A--: none
8: Cam typeSE: adjustable standard

SM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

NE: adjustable standard narrow

NM: Standard position M narrow

NQ: Standard position Q narrow
