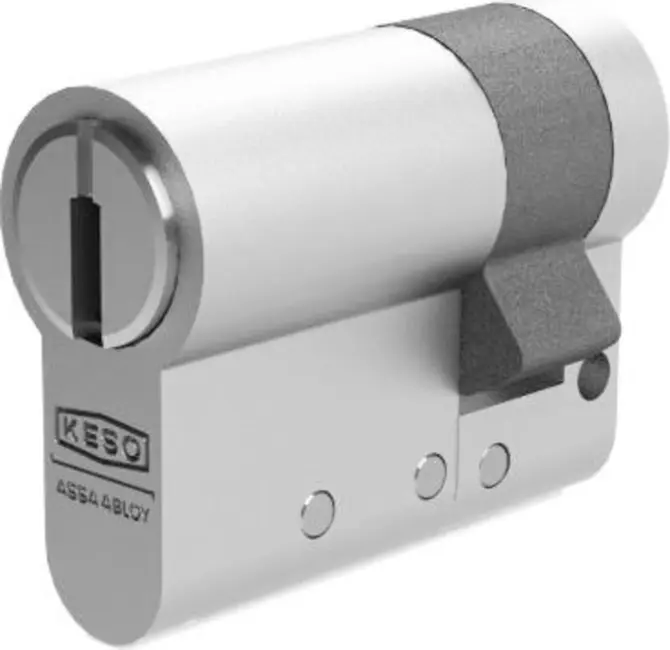

Half cylinder _1.C1P
with M4 threaded fastener and increased anti-drilling protection
Overview of Advantages
- Standard colour: nickel-plated
- Standard length: 30/10 mm
- Web at rear with 2 M4 threads
- Adjustable cam
- With hardened tumblers HRC60
- Drilling_protection
- Modular
- VdS A, 2386: 2012-07
Product description
- Half cylinder in Euro profile with M4 threaded fixing on the back.
Scope of delivery
- 1 Half cylinder
- 1 fixing screw M5
| 1: System | 9: 9000Ω² 8: 8000Ω² 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg., 2000 |
| 2: Security level | C: VdS A |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Security level A | C: VdS A |
| 5: Corrosion protection | A: EN1670 Kl. 3 |
| 6: Cylinder colour A | 04: gold decor 05: bronzed light 38: Nickel matt 56: Nickel black |
| 7: Function A | --: none |
| 8: Cam type | SE: adjustable standard SM: Standard position M SQ: Standard position Q MT: Multilock MS: Multilock narrow SP: Spider gear wheel NE: adjustable standard narrow NM: Standard position M narrow NQ: Standard position Q narrow |
