Rim cylinder _2.010

Eccentric, for various box locks

Overview of Advantages

  • Standard colour: nickel-plated
  • With hardened tumblers HRC60

Product description

  • Eccentric rim cylinder for box locks and garage door locks

Scope of delivery

  • 1 rim cylinder
  • 2 fixing screws G.102/65
  • 1_x007 escutcheon G.005/04/02

Note

  • Rosette versions: G.005/11/02 brass 11 mm high
  • G.015/05 5 mm hoch
  • G.015/10 10 mm hoch
  • G.015/15 15 mm hoch
  • G.015/20 20 mm hoch
  • G.045 IKON escutcheon
Special equipment

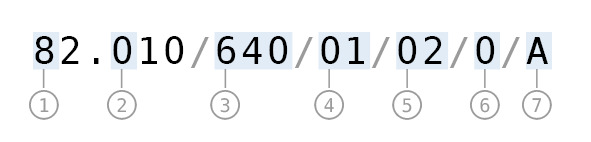

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

6: 6000FP2
2: Cylinder material0: Brass
3: Drive shaft length98: 9,8 mm

170: 17 mm

640: 64 mm

940: 94 mm

120: 120 mm
4: Rose1: G.005 meas. Ø45 mm, 4 mm high

2: G.005 meas. Ø45 mm, 11 mm high

4: G.015 CRNI 50mm 5mm high

5: G.015 CRNI Ø50mm, 10 mm high

6: G.015 CRNI Ø50 mm 15 mm high

7: G.015 CRNI Ø50mm 20 mm high

09: G.045 IKON escutcheon
5: 2: nickel plated
6: ABS0: without drill protection

1: with drilling protection
7: Corrosion protectionA: EN1670 Kl. 3

B: increased corrosion protection
