Cam cylinder _3.041

Overview of Advantages

  • Material: matt, nickel-plated brass
  • With hardened tumblers HRC60
  • Also available with 35 mm round screw-on plate
  • Deadbolt action for left-/right-hand doors available
  • Key open removable
  • Key rotation stroke: 360°
  • Deadbolt rotation stroke: 90°
  • Cylinder lengths: 25, 30, 40 mm
  • Deadbolt lengths: 20, 25, 28, 30, 35, 40, 45, 50 mm

Product description

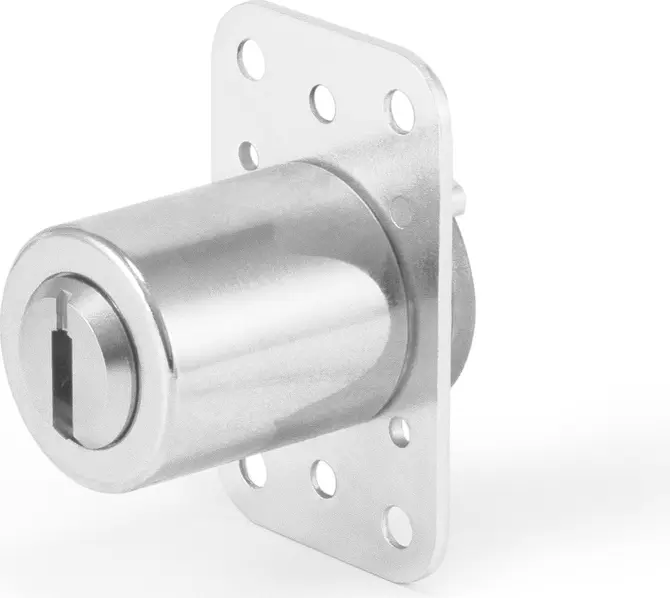

  • Locking cylinder with a fixed rectangular screw-on plate for furniture doors, drawers, hatches, etc.

Scope of delivery

  • 1 Locking cylinder with rectangular fixing plate (standard)
Special equipment
Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²
2: Cylinder material0: Brass
3: Deadbolt plunger type4B: B=20

4C: B=25

4D: B=28

4E: B=30

4F: B=35

4G: B=40

4H: B=45

4J: B=50

4K: B=70
4: Deadbolt plunger character1: Figure 1

2: Figure 2

3: Figura 3

4: Figure 4

5: Figure 5

6: Figure 6

7: Figure 7

8: Figure 8
5: Nominal length25: 25 mm

XX: 5 mm Schritte (see appendix)
6: Key withdrawal10: Key removable in open and closed position

20: Key withdrawal only in closed position
7: Fixing plate dimensionG1: 28X45, rectangular, vertical

G2: 28X45, rectangular, horizontal

K1: 22X35, rectangular, vertical

K2: 22X35, rectangular, horizontal

R3: Ø35/round mounting holes, standard
8: Cylinder colour2: nickel plated
9: Corrosion protectionA: EN1670 Kl. 3
