Cam cylinder _8._31

Compact

Overview of Advantages

  • Material: matt, nickel-plated brass
  • With hardened tumblers HRC60
  • Available with different bolt variants:
  • Various bolt backsets and offsets are available
  • With threaded fastener: M20 x 1

Product description

  • Universal locking cylinder with threaded mount for lockers, tool chests, letter boxes, switches, metal and wood working.

Scope of delivery

  • 1 locking cylinder
  • 1 deadbolt
  • 1 Fastening nut, M20 × 1 mm
Special equipment

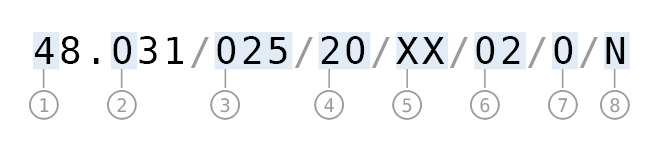

Artikelnummer
1: System4: 4000SΩ

3: 3000FPΩ, 3000SΩ, 3000S

2: 2000SΩ, 2000S, 2000 reg., 2000

1: 1000SΩ, 1000S, 1000 reg., 1000
2: Cylinder material0: Brass
3: Nominal length25: 25 mm
4: Key withdrawal20: Key withdrawal only in closed position

10: Key removable in open and closed position
5: Deadbolt plunger typeXX: Additional actuators
6: Cylinder colour2: nickel plated

3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
7: ABS0: without drill protection
8: OxideN: without oxidation protection

J: with oxidation protection
