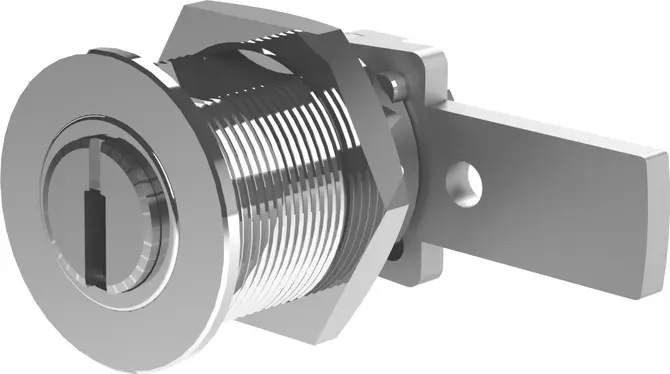

Cam cylinder _3.J31

universal

Overview of Advantages

  • Standard colour: nickel-plated
  • With hardened tumblers HRC60
  • Available with different bolt variants:
  • Various bolt backsets and offsets are available
  • With threaded fastener: M23 x 1

Product description

  • Universal locking cylinder (Insert) with threaded fixing for lockers, tool cabinets, letterboxes, switches, metal and wood mounting.

Scope of delivery

  • 1 locking cylinder
  • 1 deadbolt
  • 1 fastening nut, 1 × 1 mm, M23
  • 1 fixing nut M10 × 0.75 mm
Special equipment
Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

6: 6000FP2

4: 4000SΩ

C: 2500FP

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelJ: without drill protection
3: Deadbolt plunger typeA3: A=0 B=40
4: Nominal length25: 25 mm

XX: 5 mm Schritte (see appendix)
5: Key withdrawal10: Key removable in open and closed position

20: Key withdrawal only in closed position
6: Cylinder colour2: nickel plated
7: ABS0: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3

B: increased corrosion protection
