Switch cylinder

for Schindler lift control

Overview of Advantages

  • Material: matt, nickel-plated brass
  • Rotation movement handled by electronic switch
  • With hardened tumblers HRC60

Product description

  • Switch cylinder with 45° key withdrawal for Schindler lifts.
  • The switching position on/off or fire control can be set using the supplied ring gate and the locking pin position.
  • Installation only by trained lift service technicians.

Scope of delivery

  • 1 switch cylinder s
  • 1 ring backdrop
Special equipment

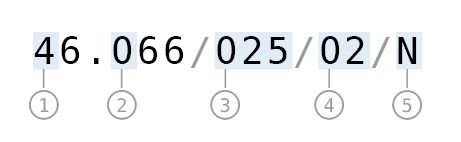

Artikelnummer
1: System4: 4000SΩ

3: 3000FPΩ, 3000SΩ, 3000S

2: 2000SΩ, 2000S, 2000 reg., 2000

1: 1000SΩ, 1000S, 1000 reg., 1000
2: Cylinder material0: Brass
3: Nominal length25: 25 mm

XX: 5 mm Schritte (see appendix)
4: Cylinder colour2: nickel plated

3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
5: OxideN: without oxidation protection

J: with oxidation protection
Variants that can be ordered
Order number
Product
46.066Switch cylinder 46.066
36.066Switch cylinder 36.066
26.066Switch cylinder 26.066
16.066Switch cylinder 16.066
