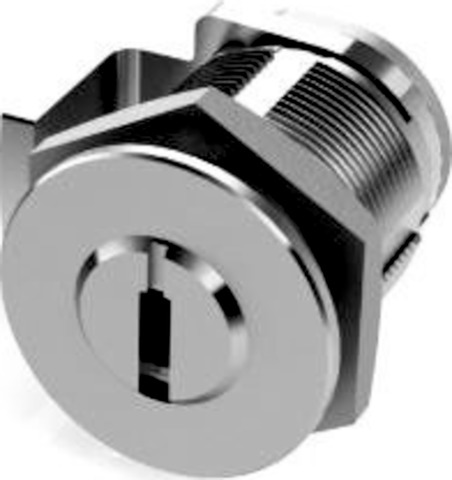

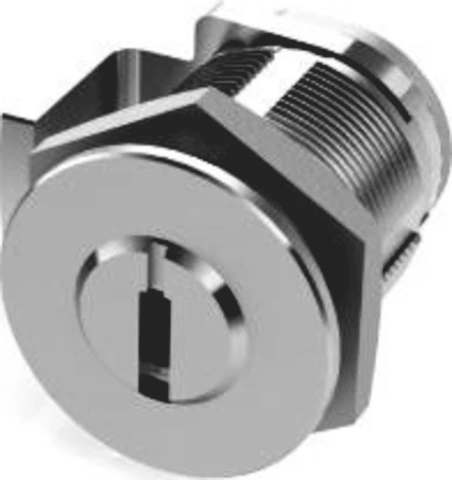

Cam cylinder _3.J31.W2

deposit

Overview of Advantages

  • Standard colour: nickel-plated
  • With hardened tumblers HRC60

Product description

  • Locking cylinder (insert) for depots with threaded fastening for key depots 17.001

Scope of delivery

  • 1 locking cylinder
  • 1 bolt E.270/W2 (bolt mould 02)
  • 1 fastening nut, 1 × 1 mm, M23

Note

  • For transom shapes see appendix
Special equipment

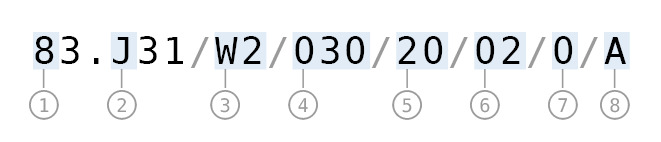

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

6: 6000FP2

4: 4000SΩ

C: 2500FP

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelJ: without drill protection
3: Deadbolt plunger typeW2: A=12.5 B=21.5 A1=16
4: Nominal length25: 25 mm

XX: 5 mm Schritte (see appendix)
5: Key withdrawal10: Key removable in open and closed position

20: Key withdrawal only in closed position
6: Cylinder colour2: nickel plated
7: ABS0: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3

B: increased corrosion protection
