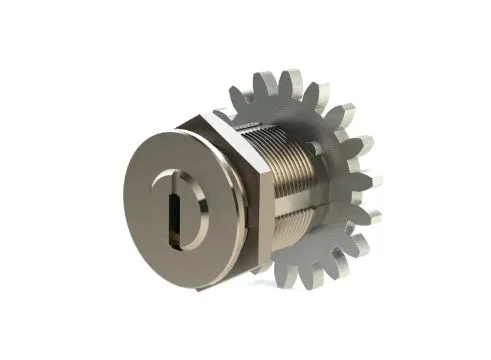

Cam cylinder _3.J31.Z1

deposit

Overview of Advantages

  • Standard colour: nickel-plated
  • With hardened tumblers HRC60
  • Functional variants actuator
  • Variant 1: Actuator Z1 to Z1; replacement of key possible at any time via deposit
  • Variant 2: Z1 to Z6; recovery of pass for emergency key from deposit, for instance. The reference key is retained in the deposit. Reset only by authorised persons
  • Variant 3: Z1 to Z7; flexibly convertible between Variant 1 and 2

Product description

  • Locking cylinder (insert) for depots with threaded fastening for key depots 17.001, 17.002, 17.003 and 17.004

Scope of delivery

  • 1 locking cylinder
  • 1 gear wheel driver
  • 1 fastening nut, 1 × 1 mm, M23
Special equipment
Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

6: 6000FP2

4: 4000SΩ

C: 2500FP

2: 2000SΩ, 2000S, 2000 reg., 2000
2: Security levelJ: without drill protection
3: Deadbolt plunger typeZ1: Standard gear wheel

Z6: Key blocking

Z7: Optional key blocking
4: Nominal length25: 25 mm

XX: 5 mm Schritte (see appendix)
5: Key withdrawal10: Key removable in open and closed position

20: Key withdrawal only in closed position
6: Cylinder colour2: nickel plated
7: ABS0: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3

B: increased corrosion protection
