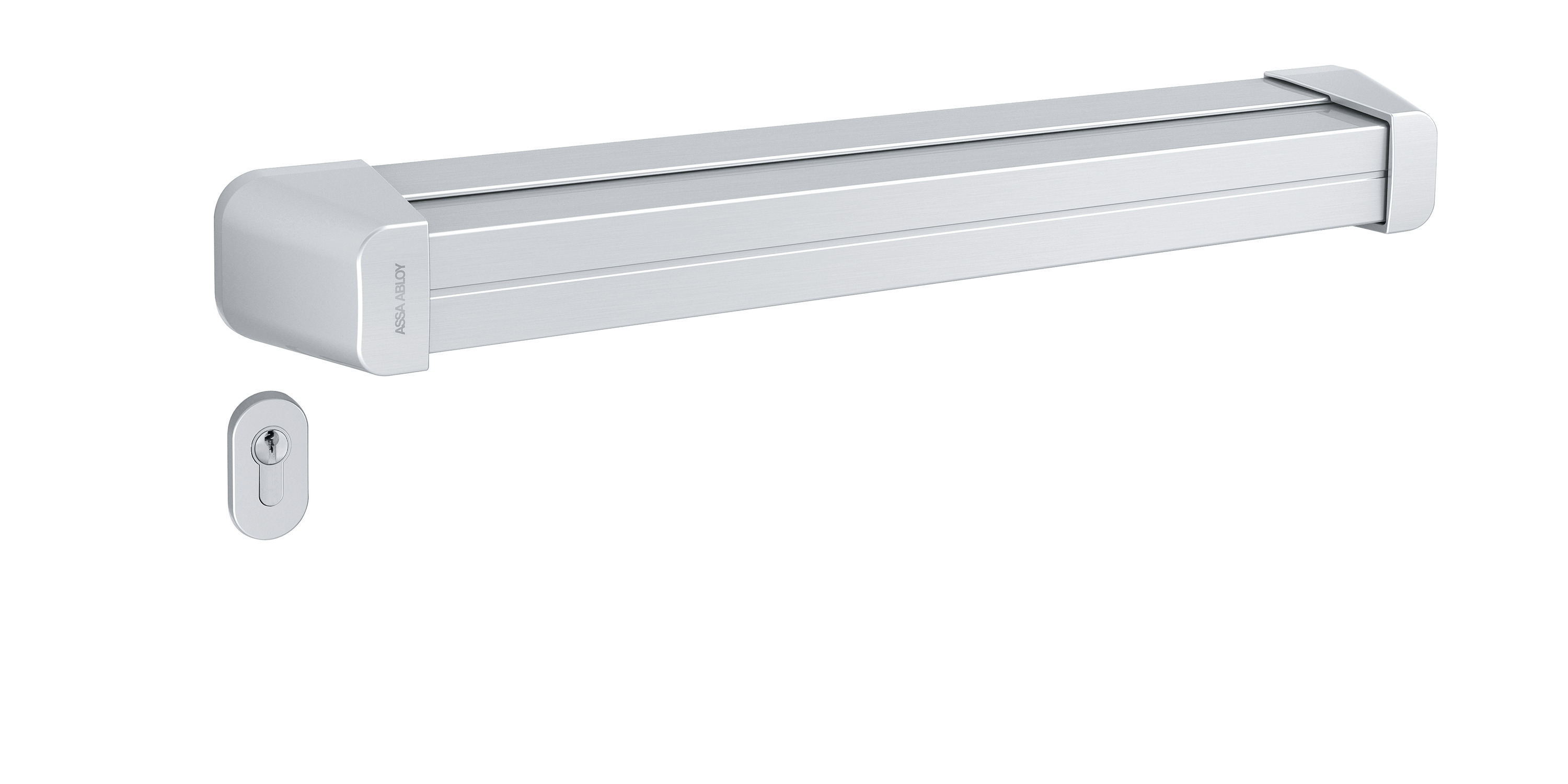

Panic touch bar narrow style version model N2600
Narrow style version
Product description
- Panic bar N2600 (type B) tested in conjunction with OneSystem panic locks and OneSystem passive leaf locks in accordance with EN 1125 / approved for fire rated doors according to EN 1634 / product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific parameters / tested for 200,000 cycles and 300 kg door weight
Overview of Advantages
- Universal ASSA ABLOY design, compatiblewith door closers
| Mounting | Oval rose |
| Material | Stainless steel/ aluminium |
| DIN direction | DIN L/R |
| Order number | Description |
|---|---|
| N26000006800000 | Stainless steel, profile length 680 mm, BA 610-730 mm |
| N26000007800000 | Stainless steel, profile length 780 mm, BA 710-830 mm |
| N26000008800000 | Stainless steel, profile length 880 mm, BA 810-930 mm |
| N26000009800000 | Stainless steel, profile length 980 mm, BA 910-1030 mm |
| N26000010800000 | Stainless steel, profile length 1080 mm, BA 1010-1130 mm |
| N26000011800000 | Stainless steel, profile length 1180 mm, BA 1110-1230 mm |
| N26000012800000 | Stainless steel, profile length 1280 mm, BA 1210-1330 mm |
| N26000013800000 | Stainless steel, profile length 1380 mm, BA 1310-1430 mm |
