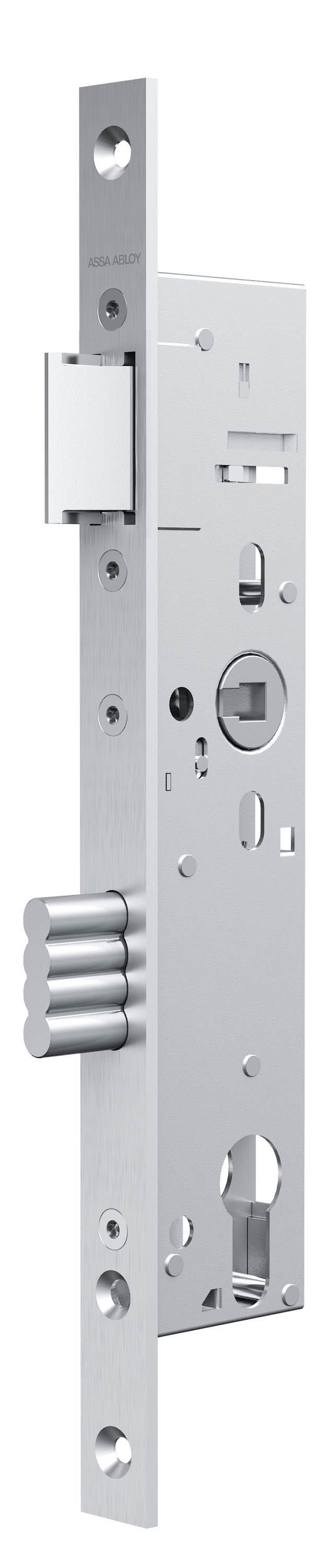

Latch bolt lock N1500

Euro profile cylinders, follower 8 mm, distance 92 mm, DIN L/R

Product description

  • OneSystem latch bolt lock N1500 according to EN 12209 for single-leaf doors, product- specific environmental product declaration (EPD) according to EN 15804 with article-specific parameters / tested for 200,000 cycles and 300 kg door weight

Overview of Advantages

  • Environmental product declaration (EPD) in accordance with EN 15804
  • Compliance with EN 12209
  • Small rear backset 15 mm
  • Continuous screw connection of escutcheons
  • Suitable flush bolt integrated in the strike plate
  • 20 mm bolt throw with a single rotation
  • Also available as a fire protection version
  • Latch DIN left/right reversible without tools
  • Closed lock case at the top and bottom
  • Stainless steel faceplate
  • Security fittings and oval roses can be screwed on through the lock
  • Deadbolt with anti-tampering design
  • Developed for Euro profile cylinder and Swiss round Profile cylinder

Note

  • For U-shaped versions, the end caps are included in the scope of supply. Please note:, for U-shaped versions, the backset is shortened by 1mm.

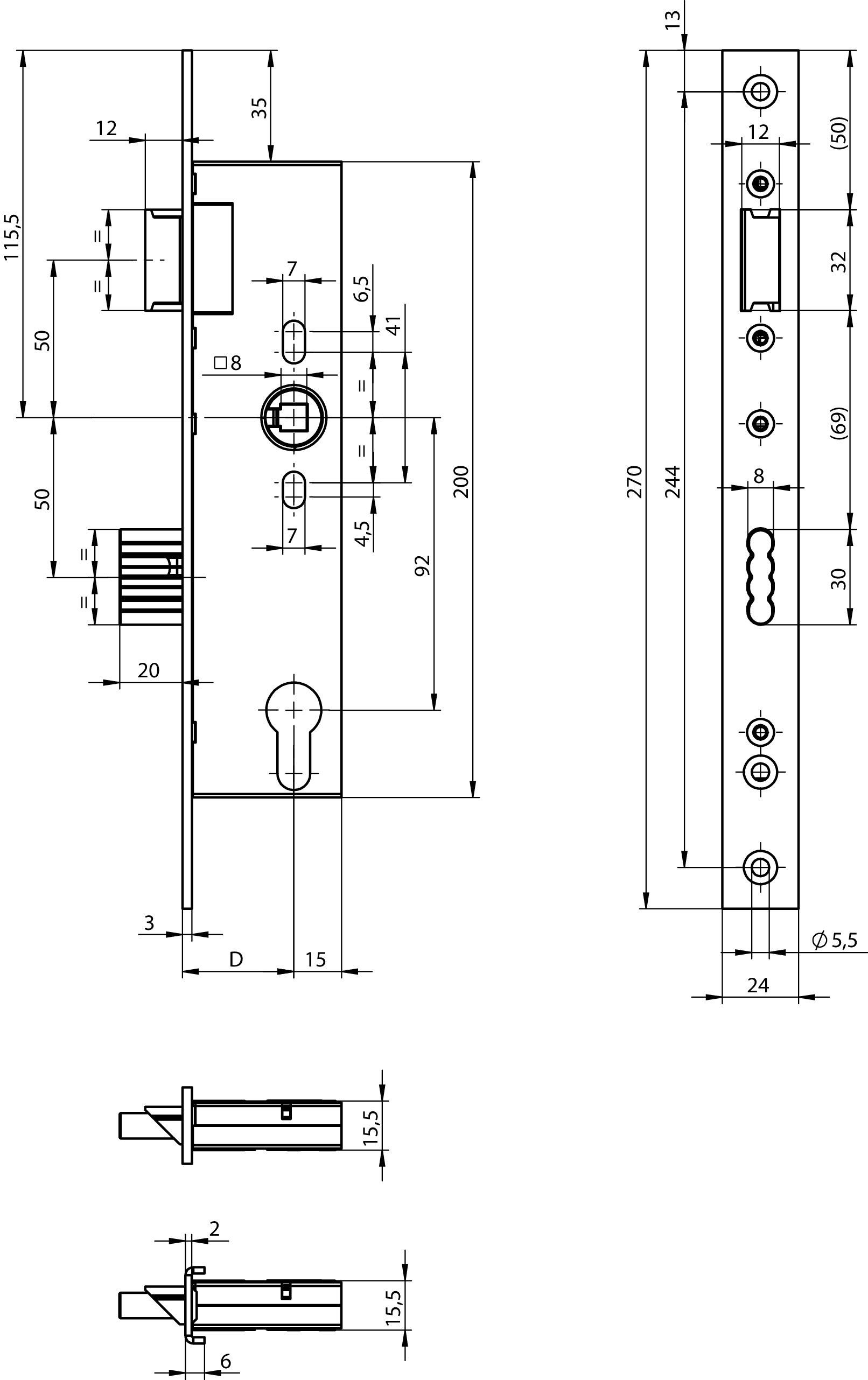

Technical data
Backset25, 30, 35, 40, 45 mm
Distance92 mm (prepared for Euro profile cylinders)
ForendU-shaped face plate: U6 x 24 mm Flat face plate: F3 x 20 mm, F3 x 24 mm, R3 x 20 mm, R3 x 24 mm
Material face plateStainless steel
LatchDIN L/R (symmetrical face plate)
Bolt throw20 mm
StandardsEN 12209
Forend length185, 270, 320 mm (depending on version)
Leaf typeActive door leaf
Door typeAluminium/steel profile
Functionsmechanical
Screw typeMortise lock
Panic functionNein
MonitoringNo
Top lockNo
door systemSingle-leaf door
Fire protectionNo
Variants that can be ordered
Order number
Forend shape
Forend length
N150000085*0008F3 x 24 mm270 mm
N150000085*0018U6 x 24 mm270 mm
N150000085*000QR3 x 24 mm270 mm
