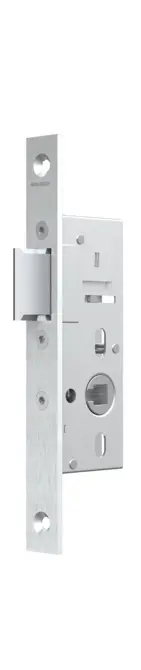

Latch lock N1502

Follower 8 mm, DIN L/R

Product description

  • OneSystem latch lock N1502 for single-leaf doors, product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific Parameters.

Overview of Advantages

  • Environmental product declaration (EPD) in accordance with EN 15804
  • Compliance with EN 12209
  • Small rear backset 15 mm
  • Continuous screw connection of escutcheons
  • Suitable flush bolt integrated in the strike plate
  • 20 mm bolt throw with a single rotation
  • Also available as a fire protection version
  • Latch DIN left/right reversible without tools
  • Closed lock case at the top and bottom
  • Stainless steel faceplate
  • Security fittings and oval roses can be screwed on through the lock
  • Deadbolt with anti-tampering design
  • Developed for Euro profile cylinder and Swiss round Profile cylinder

Note

  • For U-shaped versions, the end caps are included in the scope of supply. Please note:, for U-shaped versions, the backset is shortened by 1mm.

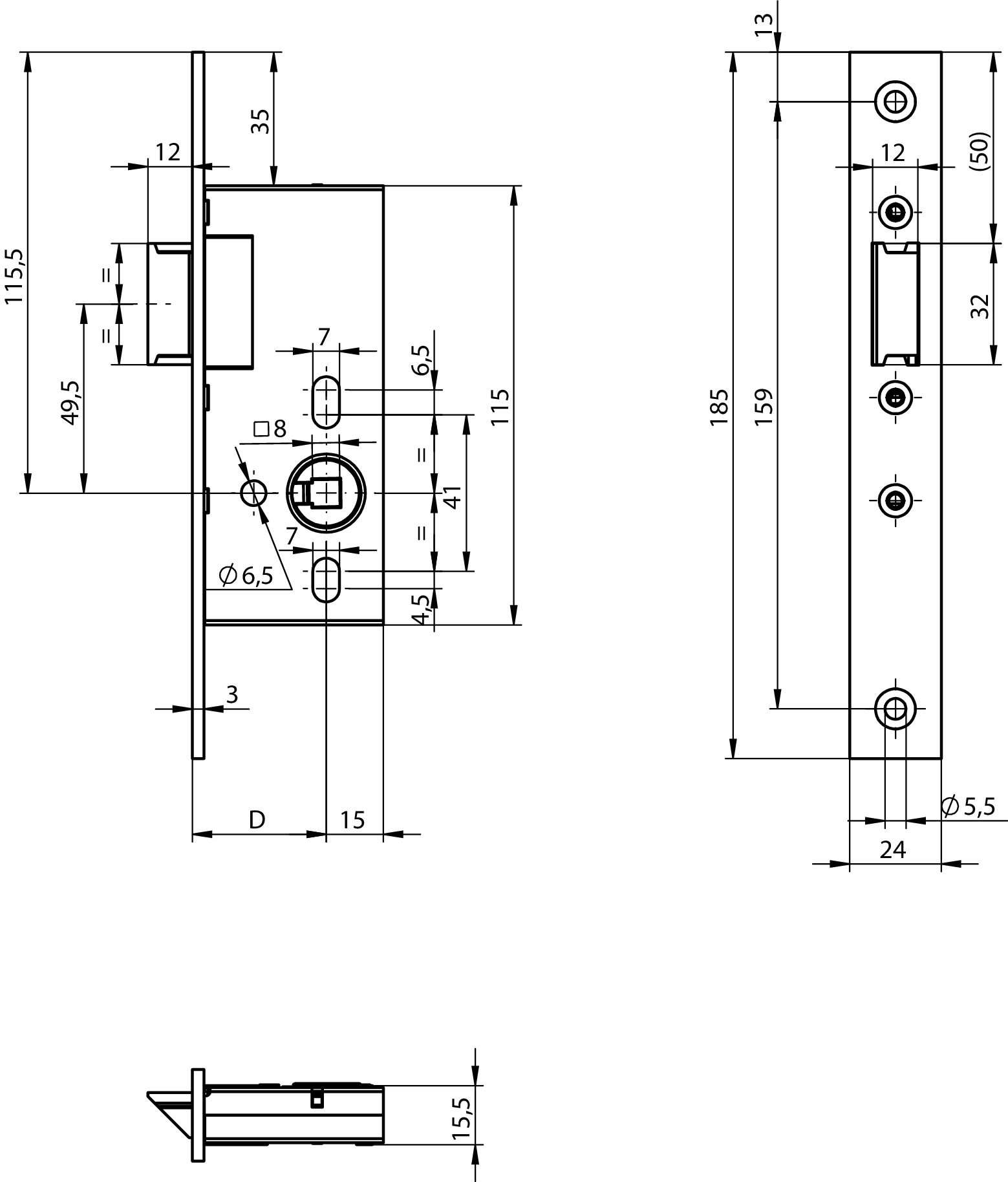

Technical data
Backset25, 30, 35, 40, 45 mm
Distance92 mm (prepared for Euro profile cylinder), 94 mm (prepared for Swiss round cylinder)
ForendU-shaped face plate: U6 x 24 mm Flat face plate: F3 x 20 mm, F3 x 24 mm, R3 x 20 mm, R3 x 24 mm
Forend length185, 270, 320 mm (depending on version)
Material face plateStainless steel
LatchDIN L/R (symmetrical face plate)
Bolt throw20 mm
StandardsEN 12209
Panic functionNein
MonitoringNo
Top lockNo
Door typeAluminium/steel profile
Functionsmechanical
door systemSingle-leaf door
Screw typeMortise lock
Fire protectionNo
Leaf typeActive door leaf
Variants that can be ordered
Order number
Forend shape
Forend length
N15020008X*001CF3 x 24 mm185 mm
N15020008X*001GU6 x 24 mm185 mm
N15020008X*001AR3 x 24 mm185 mm
