Switch lock N560F

suitable for use with passive leaf lock N145x / N146x

  • ArtNo: N560F-R054D07-1
  • EAN: 4042203824812
Technical data
DIN-directionL/R
Forend length54 mm
Forend shapeR3 x 24 mm
Downloads for Product

General

Product sheet Switch lock N560F (PDF)

Medias

Product image (JPG, 274 KB)
Product image (EPS, 17.60 MB)

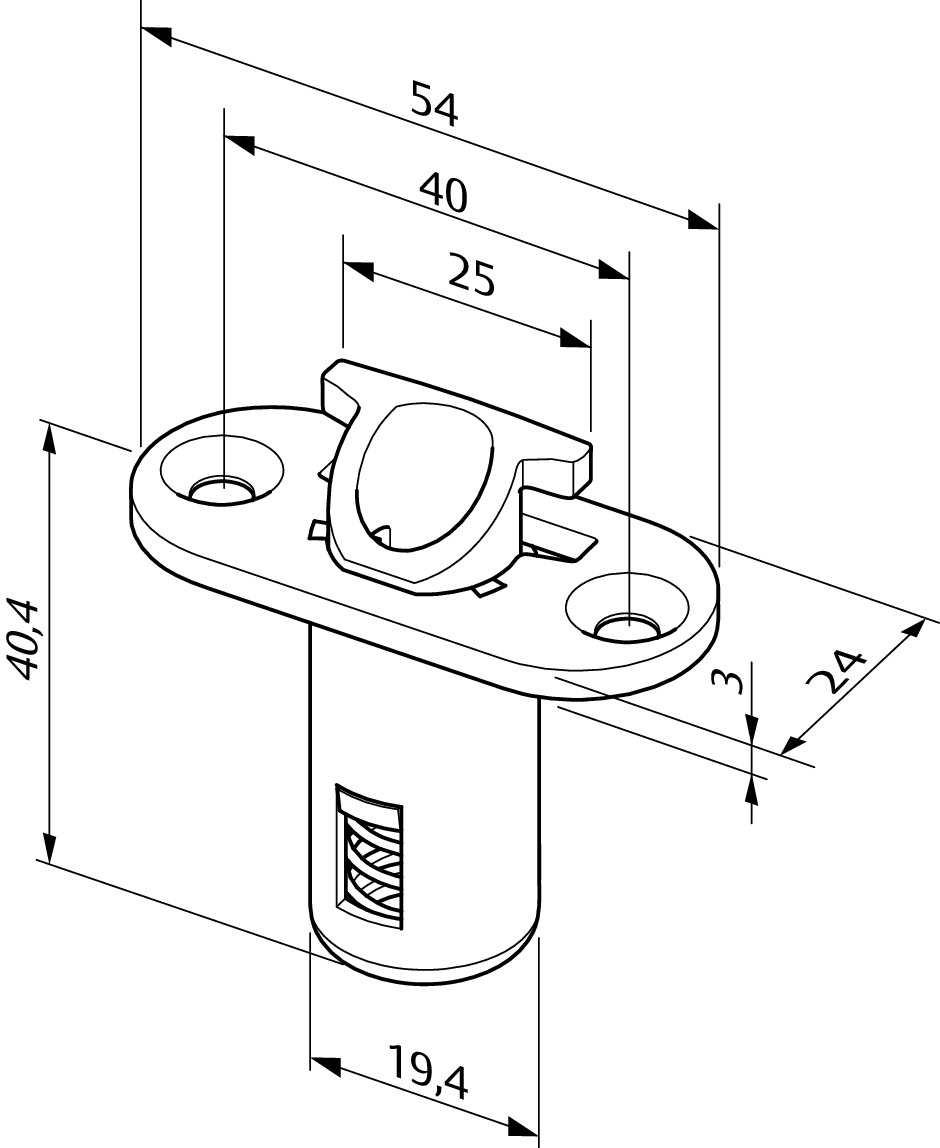

Technical drawing (JPG, 108 KB)
Technical drawing (EPS, 2.22 MB)
Downloads for Product Range

technical catalogue Solution Locks (PDF, 15.68 MB)
Sales brochure Solution Locks (PDF, 956 KB)
OneSystem door solutions (PDF, 2.29 MB)
Architectural hardware (PDF, 5.54 MB)
