Cover profile FSA 8400 [P]

Features

Door types

Overview of Advantages

  • Cover profile for doors with universal hinges
  • Simple and secure installation
  • Height adjustable from 31 mm hinge height
  • Quick mount with marking aid (optional)
  • Without drilling, with screws

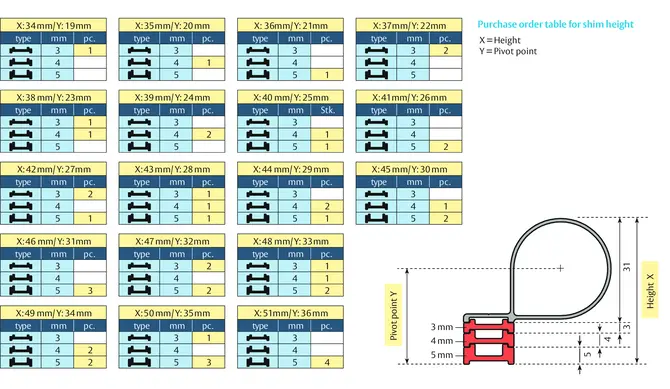

  • Modular shim system with 3, 4 and 5 mm steps

Scope of delivery

  • All profiles are delivered without drilling, with screws
  • Shims without srews
  • Profile per running meter: only cover profiles

Tender specification

Planet finger protection cover profiles FSA 8400 [P] for safeguarding the hinge side at the secondary closing edge. Hinge side protective profile with variable shimming system for universal hinges on flush fit profiled doors. Shimming range for pivotal points of 20–36 mm (please select shimming profile). Profile made of aluminum. Standard colour anodised EV1 or powder coated RAL 9016 white (please select). Set bar for self cut to size. Length: 1900 mm.

Technical data
Lengthmax. 2500 mm
Can be shortenedyes
Profile materialAluminium
Variants that can be ordered
Order number
Profile
Version
Surface
Order placement information
F-8411-30P30for 2 parts (1900 mm)silver anodised EV1
F-8421-30P30for 2 parts (1900 mm)RAL 9016
F-8491-30P30for 2 parts (1900 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8411-20P20for 2 parts (1900 mm)silver anodised EV1
F-8421-20P20for 2 parts (1900 mm)RAL 9016
F-8491-20P20for 2 parts (1900 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8411-3PS3for 2 parts (1900 mm)silver anodised EV1
F-8421-3PS3for 2 parts (1900 mm)RAL 9016
F-8491-3PS3for 2 parts (1900 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8411-4PS4for 2 parts (1900 mm)silver anodised EV1
F-8421-4PS4for 2 parts (1900 mm)RAL 9016
F-8491-4PS4for 2 parts (1900 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8411-5PS5for 2 parts (1900 mm)silver anodised EV1
F-8421-5PS5for 2 parts (1900 mm)RAL 9016
F-8491-5PS5for 2 parts (1900 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8413-30P30All parts made to measure (per linear meter)silver anodised EV1
F-8423-30P30All parts made to measure (per linear meter)RAL 9016
F-8493-30P30All parts made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8413-20P20All parts made to measure (per linear meter)silver anodised EV1
F-8423-20P20All parts made to measure (per linear meter)RAL 9016
F-8493-20P20All parts made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8413-3PS3All parts made to measure (per linear meter)silver anodised EV1
F-8423-3PS3All parts made to measure (per linear meter)RAL 9016
F-8493-3PS3All parts made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8413-4PS4All parts made to measure (per linear meter)silver anodised EV1
F-8423-4PS4All parts made to measure (per linear meter)RAL 9016
F-8493-4PS4All parts made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8413-5PS5All parts made to measure (per linear meter)silver anodised EV1
F-8423-5PS5All parts made to measure (per linear meter)RAL 9016
F-8493-5PS5All parts made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8414-30P30Profile per linear meter (max. 2500 mm)silver anodised EV1
F-8424-30P30Profile per linear meter (max. 2500 mm)RAL 9016
F-8494-30P30Profile per linear meter (max. 2500 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8414-20P20Profile per linear meter (max. 2500 mm)silver anodised EV1
F-8424-20P20Profile per linear meter (max. 2500 mm)RAL 9016
F-8494-20P20Profile per linear meter (max. 2500 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8414-3PS3Profile per linear meter (max. 2500 mm)silver anodised EV1
F-8424-3PS3Profile per linear meter (max. 2500 mm)RAL 9016
F-8494-3PS3Profile per linear meter (max. 2500 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8414-4PS4Profile per linear meter (max. 2500 mm)silver anodised EV1
F-8424-4PS4Profile per linear meter (max. 2500 mm)RAL 9016
F-8494-4PS4Profile per linear meter (max. 2500 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-8414-5PS5Profile per linear meter (max. 2500 mm)silver anodised EV1
F-8424-5PS5Profile per linear meter (max. 2500 mm)RAL 9016
F-8494-5PS5Profile per linear meter (max. 2500 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
Accessories/Individual parts

Order number
Product
Installation aid, adhesive pads
901320Installation aid, adhesive pads
Installation aid, with 6 adhesive pads
Universal drill bit Ø3 mm
901331Universal drill bit Ø3 mm
Universal drill bit Ø3 mm, for masonry and concrete back-filled metal frames, 65 mm
Set of screws for cover profile FSA 8400
901328Set of screws for cover profile FSA 8400
Screws for cover profile FSA 8400, Typ P,10 pcs each/type of screw
Planet installation box, inc. carrying strap
901301Planet installation box, inc. carrying strap
Planet installation box, incl. carrying strap, stable wooden box with saw guide made of metal
Planet marking aid
901300Planet marking aid
Planet marking aid, plastic, black, set incl. pencil
