Overview of Advantages
- Cover profile for rebated doors
- Quick mount with marking aid (optional)
- Invisible clip-connection
- Built-in ability to adjust
- Damage-free removal
- Suitable for all hinge diameters
Scope of delivery
- Cover profiles with clips and screws
- Profile per running meter: only cover profiles
Tender specification

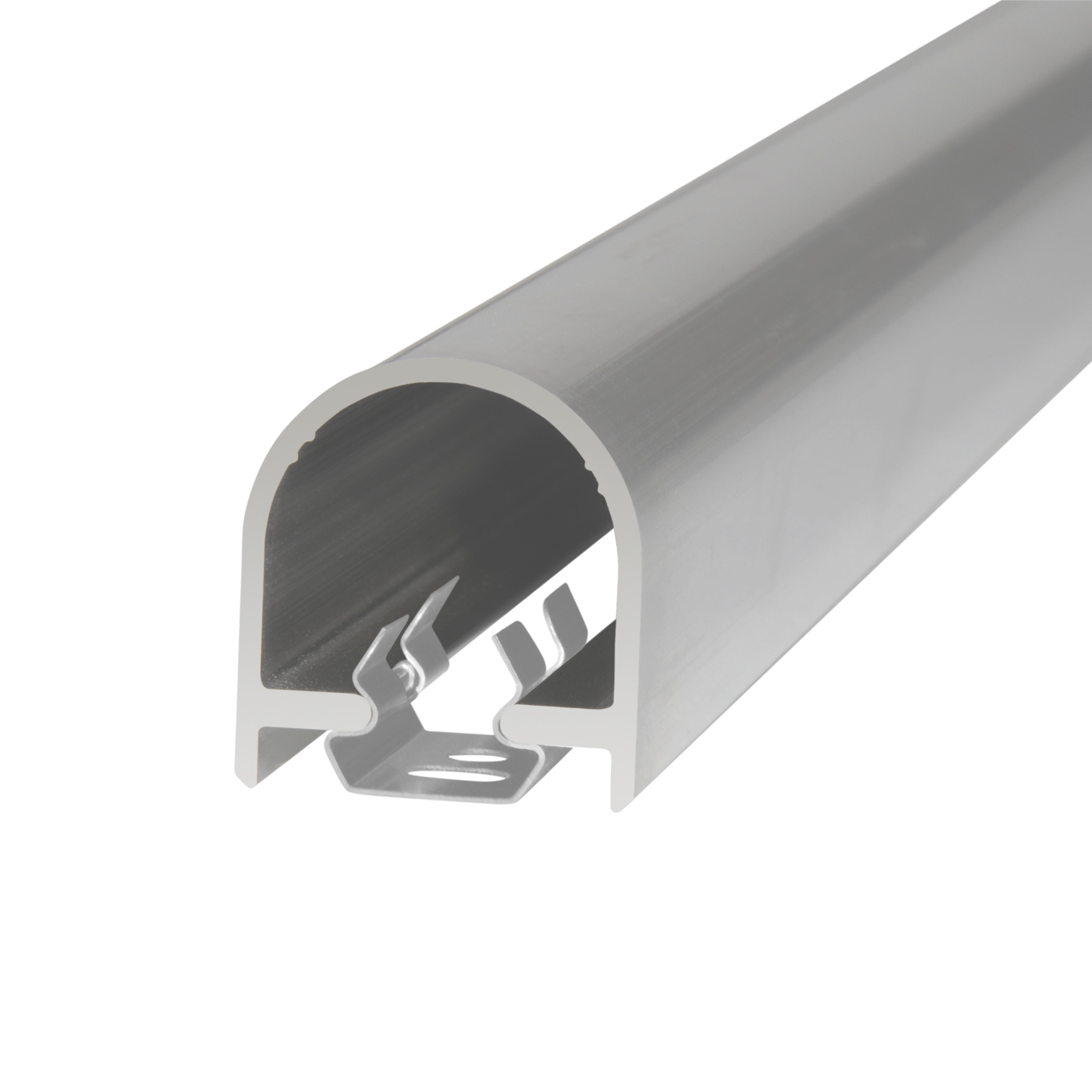

Planet finger protection cover profiles FSA 8100 [U-CLIP] For safeguarding the hinge side at the secondary closing edge. Hinge side protective profile for rebated doors with a concealed clip fastener of type FSA U16-Clip / U18-Clip / U20-Clip / U22-Clip (please select). System for damage-free removal and re-attachment of the cover profile. Profile made of aluminium. Standard colour anodised EV1, anodised or powder coated stainless steel, RAL 9016 white or for U18-C also black C35 satin anodised (please select). Safeguarding with profile 1 from FFL to lower edge of lower hinge and profile 2 between the hinges. Or safeguarding with profile 1 from FFL to lower edge of lower hinge, profile 2 between the hinges and profile 3 from upper edge of upper hinge to upper edge of door leaf.
Length | max. 2500 mm |
Can be shortened | yes |
Profile size | 16 mm (U16-Clip) / 18 mm (U18-Clip) / 20 mm (U20-Clip) / 22 mm (U22-Clip) |
Profile material | Aluminium |
Order number | Profile size | Version | Surface | Order placement information |
---|---|---|---|---|
F-8111-16 | U16-Clip - 16 mm | for 2 parts (1755 mm) | silver anodised EV1 | |
F-8121-16 | U16-Clip - 16 mm | for 2 parts (1755 mm) | RAL 9016 | |
F-8151-16 | U16-Clip - 16 mm | for 2 parts (1755 mm) | Matt anodised stainless steel (INOX) | |
F-8191-16 | U16-Clip - 16 mm | for 2 parts (1755 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8111-18 | U18-Clip - 18 mm | for 2 parts (1755 mm) | silver anodised EV1 | |
F-8121-18 | U18-Clip - 18 mm | for 2 parts (1755 mm) | RAL 9016 | |
F-8151-18 | U18-Clip - 18 mm | for 2 parts (1755 mm) | Matt anodised stainless steel (INOX) | |
F-8161-18 | U18-Clip - 18 mm | for 2 parts (1755 mm) | black C35 matt anodised | |
F-8191-18 | U18-Clip - 18 mm | for 2 parts (1755 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8111-20 | U20-Clip - 20 mm | for 2 parts (1755 mm) | silver anodised EV1 | |
F-8121-20 | U20-Clip - 20 mm | for 2 parts (1755 mm) | RAL 9016 | |
F-8151-20 | U20-Clip - 20 mm | for 2 parts (1755 mm) | Matt anodised stainless steel (INOX) | |
F-8191-20 | U20-Clip - 20 mm | for 2 parts (1755 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8111-22 | U22-Clip - 22 mm | for 2 parts (1755 mm) | silver anodised EV1 | |
F-8121-22 | U22-Clip - 22 mm | for 2 parts (1755 mm) | RAL 9016 | |
F-8151-22 | U22-Clip - 22 mm | for 2 parts (1755 mm) | Matt anodised stainless steel (INOX) | |
F-8191-22 | U22-Clip - 22 mm | for 2 parts (1755 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8112-16 | U16-Clip - 16 mm | for 3 parts (1980 mm) | silver anodised EV1 | |
F-8122-16 | U16-Clip - 16 mm | for 3 parts (1980 mm) | RAL 9016 | |
F-8152-16 | U16-Clip - 16 mm | for 3 parts (1980 mm) | Matt anodised stainless steel (INOX) | |
F-8192-16 | U16-Clip - 16 mm | for 3 parts (1980 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8112-18 | U18-Clip - 18 mm | for 3 parts (1980 mm) | silver anodised EV1 | |
F-8122-18 | U18-Clip - 18 mm | for 3 parts (1980 mm) | RAL 9016 | |
F-8152-18 | U18-Clip - 18 mm | for 3 parts (1980 mm) | Matt anodised stainless steel (INOX) | |
F-8162-18 | U18-Clip - 18 mm | for 3 parts (1980 mm) | black C35 matt anodised | |
F-8192-18 | U18-Clip - 18 mm | for 3 parts (1980 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8112-20 | U20-Clip - 20 mm | for 3 parts (1980 mm) | silver anodised EV1 | |
F-8122-20 | U20-Clip - 20 mm | for 3 parts (1980 mm) | RAL 9016 | |
F-8152-20 | U20-Clip - 20 mm | for 3 parts (1980 mm) | Matt anodised stainless steel (INOX) | |
F-8192-20 | U20-Clip - 20 mm | for 3 parts (1980 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8112-22 | U22-Clip - 22 mm | for 3 parts (1980 mm) | silver anodised EV1 | |
F-8122-22 | U22-Clip - 22 mm | for 3 parts (1980 mm) | RAL 9016 | |
F-8152-22 | U22-Clip - 22 mm | for 3 parts (1980 mm) | Matt anodised stainless steel (INOX) | |
F-8192-22 | U22-Clip - 22 mm | for 3 parts (1980 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8113-16 | U16-Clip - 16 mm | All parts made to measure (per linear meter) | silver anodised EV1 | |
F-8123-16 | U16-Clip - 16 mm | All parts made to measure (per linear meter) | RAL 9016 | |
F-8153-16 | U16-Clip - 16 mm | All parts made to measure (per linear meter) | Matt anodised stainless steel (INOX) | |
F-8193-16 | U16-Clip - 16 mm | All parts made to measure (per linear meter) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8113-18 | U18-Clip - 18 mm | All parts made to measure (per linear meter) | silver anodised EV1 | |
F-8123-18 | U18-Clip - 18 mm | All parts made to measure (per linear meter) | RAL 9016 | |
F-8153-18 | U18-Clip - 18 mm | All parts made to measure (per linear meter) | Matt anodised stainless steel (INOX) | |
F-8163-18 | U18-Clip - 18 mm | All parts made to measure (per linear meter) | black C35 matt anodised | |
F-8193-18 | U18-Clip - 18 mm | All parts made to measure (per linear meter) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8113-20 | U20-Clip - 20 mm | All parts made to measure (per linear meter) | silver anodised EV1 | |
F-8123-20 | U20-Clip - 20 mm | All parts made to measure (per linear meter) | RAL 9016 | |
F-8153-20 | U20-Clip - 20 mm | All parts made to measure (per linear meter) | Matt anodised stainless steel (INOX) | |
F-8193-20 | U20-Clip - 20 mm | All parts made to measure (per linear meter) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8113-22 | U22-Clip - 22 mm | All parts made to measure (per linear meter) | silver anodised EV1 | |
F-8123-22 | U22-Clip - 22 mm | All parts made to measure (per linear meter) | RAL 9016 | |
F-8153-22 | U22-Clip - 22 mm | All parts made to measure (per linear meter) | Matt anodised stainless steel (INOX) | |
F-8193-22 | U22-Clip - 22 mm | All parts made to measure (per linear meter) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8114-16 | U16-Clip - 16 mm | Profile per linear meter (max. 2500 mm) | silver anodised EV1 | |
F-8124-16 | U16-Clip - 16 mm | Profile per linear meter (max. 2500 mm) | RAL 9016 | |
F-8154-16 | U16-Clip - 16 mm | Profile per linear meter (max. 2500 mm) | Matt anodised stainless steel (INOX) | |
F-8194-16 | U16-Clip - 16 mm | Profile per linear meter (max. 2500 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8114-18 | U18-Clip - 18 mm | Profile per linear meter (max. 2500 mm) | silver anodised EV1 | |
F-8124-18 | U18-Clip - 18 mm | Profile per linear meter (max. 2500 mm) | RAL 9016 | |
F-8154-18 | U18-Clip - 18 mm | Profile per linear meter (max. 2500 mm) | Matt anodised stainless steel (INOX) | |
F-8164-18 | U18-Clip - 18 mm | Profile per linear meter (max. 2500 mm) | black C35 matt anodised | |
F-8194-18 | U18-Clip - 18 mm | Profile per linear meter (max. 2500 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8114-20 | U20-Clip - 20 mm | Profile per linear meter (max. 2500 mm) | silver anodised EV1 | |
F-8124-20 | U20-Clip - 20 mm | Profile per linear meter (max. 2500 mm) | RAL 9016 | |
F-8154-20 | U20-Clip - 20 mm | Profile per linear meter (max. 2500 mm) | Matt anodised stainless steel (INOX) | |
F-8194-20 | U20-Clip - 20 mm | Profile per linear meter (max. 2500 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
F-8114-22 | U22-Clip - 22 mm | Profile per linear meter (max. 2500 mm) | silver anodised EV1 | |
F-8124-22 | U22-Clip - 22 mm | Profile per linear meter (max. 2500 mm) | RAL 9016 | |
F-8154-22 | U22-Clip - 22 mm | Profile per linear meter (max. 2500 mm) | Matt anodised stainless steel (INOX) | |
F-8194-22 | U22-Clip - 22 mm | Profile per linear meter (max. 2500 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
| Order number | Product |
---|---|---|
901321 | Spare clips for cover profile FSA 8100 [U-Clip] Spare clips for cover profile FSA 8100 [U-Clip], stainless, 10 pieces incl. screws | |
901326 | Set of screws for cover profile FSA 8100 Screws for cover profile FSA 8100, type U-Clip, 10 pieces | |
901320 | Installation aid, adhesive pads Installation aid, with 6 adhesive pads | |
901331 | Universal drill bit Ø3 mm Universal drill bit Ø3 mm, for masonry and concrete back-filled metal frames, 65 mm | |
901300 | Planet marking aid Planet marking aid, plastic, black, set incl. pencil | |
901301 | Planet installation box, inc. carrying strap Planet installation box, incl. carrying strap, stable wooden box with saw guide made of metal | |
Adhesive kit U-Clip, for steel frames |
