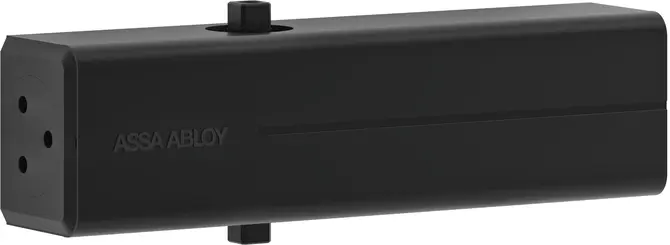

ASSA ABLOY DC140
Rack and pinion door closer without link arm
Product description
- Door closer with rack and pinion technology without rod
- Certified in compliance with EN 1154, size 2/3/4/5
- For single action doors up to 1250 mm wide
Overview of Advantages
- Suitable for fire and smoke protection doors
- Can be used for left and right-handed doors
- Thermodynamic valves for consistent performance
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Closing force configurable
- Opening angle up to 180° (EN5 = 125°)
- Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005
Note
- Not for use on fire and smoke protection doors in Germany
view construction details
| Customer segment | Advantages |
|---|---|
| Project planners |
|
| Builders |
|
| Trade |
|
| User |
|
| Closing force | EN 2/3/4/5 |
| Door width up to | 1250 mm |
| Suitable for fire doors | Yes |
| DIN direction | Left / right handed |
| Closing speed | Variable between 180°-15° / EN5 = 125°-15° |
| Latching speed | Variable between 15°-0° |
| Backcheck effect | Variable above 75° |
| CE marking for building products | Yes |
| Certified in compliance with | EN 1154 |
| Length | 206 mm |
| Height | 55 mm |
| Depth | 43 mm |
| Weight | 1.75 kg |
| Colour | Black, similar to RAL9005 |
| | Order number | Product |
|---|---|---|
 | DCL140-----9005 | Link arm L140 Black, similar to RAL9005 |
 | DCL141-----9005 | Hold-open link arm Black, similar to RAL9005 |
 | DCA161-----9005 | Mounting Plate A161 For Guide Rail Model DC140, black, similar to RAL9005 |
 | DCA154-----9005 | Parallel arm bracket A154 Black, similar to RAL9005 |
