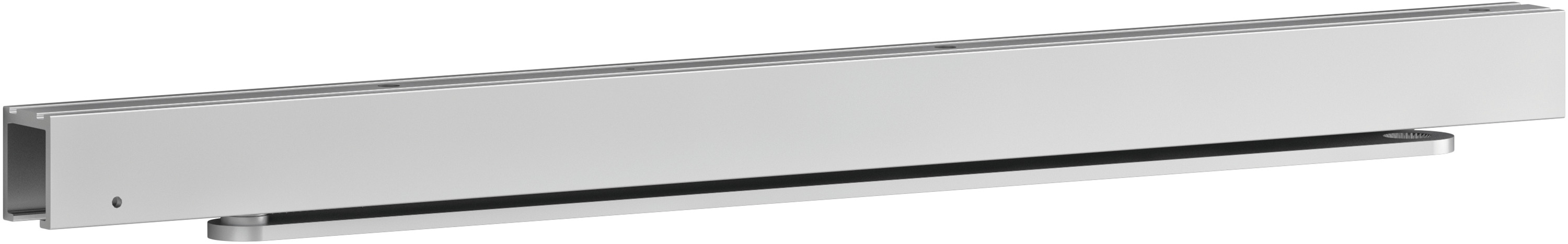

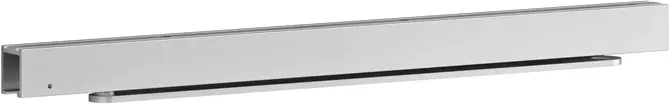

G880 concealed guide rail for DC860 door closer

For single-leaf doors up to size EN 5 (1,250 mm), with electromechanical hold-open mode

Concealed door closer with Cam-Motion® technology and guide rail with electro-mechanical hold-open device for single leaf doors
Certified in compliance with DIN EN 1155, size 3-6
Approved according to DIN EN 1154, size 1-5
Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
Meets the requirements of DIN SPEC 1104 / CEN15894
Suitable for fire and smoke protection doors
For single action doors up to 1250 mm wide
DIBt approval with various smoke detector systems

Customer segment	Advantages
Project planners	Extensive range of uses: Fire and smoke protection doors as well as standard doors Fulfils barrier-free building requirements (EA / CEN TR 15894) Comprehensive functions, standard or optional
Builders	Quick and easy installation Quickly and easily adjustable Suitable for left and right handed doors
Trade	Reduced inventory costs due to modular product range One single product suitable for a large variety of mounting positions Complementary accessories available for the whole product range
User	Easier door opening and improved accessibility due to reapidly decreasing torque Largely unaffected by temperature fluctuations because of thermodynamic valves

Rated current consumption	60 mA
Required power supply	24 V DC
Continous duty	100 % ED
Suitable for fire doors	Yes
Certified in compliance with	DIN EN 1155 / 1154
CE marking for building products	Yes

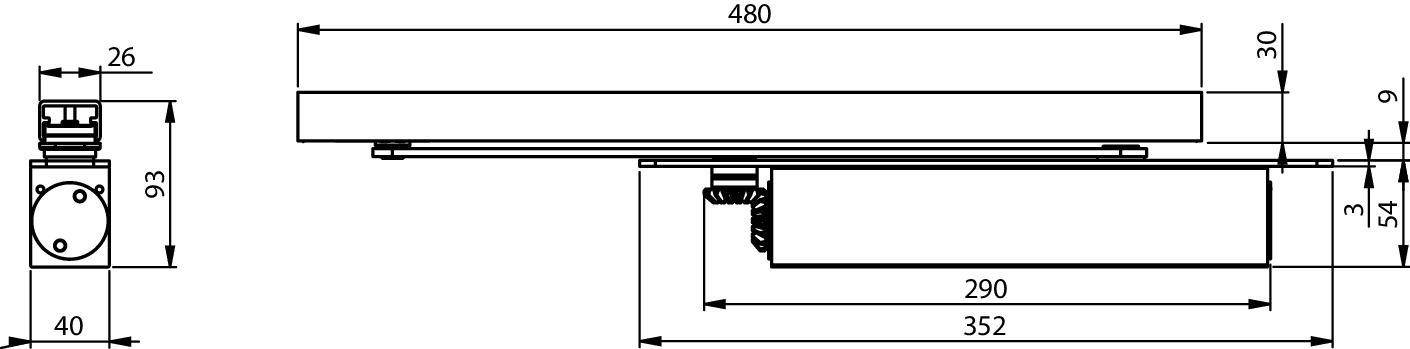

Length	493 mm
Height	30 mm
Depth	26 mm
Weight	0,9 kg

Order number	Description
DCG880-----EV1-	With electric hold-open device, silver EV1
DCG880-----XXXX	With electric hold-open device, custom colour*

	Order number	Product
	DCA102-----EV1-	Carry bar A102 For two-leaf doors
	DCA114---------	For guide rail G881
	DCA191---------	Opening damper A191 For guide rail G881
	DCA162-------40	Mounting plate set for metal doors.
	DCA193---------	Fire protection A193 For DC860
