G881 concealed guide rail for DC860 door closer

For double-leaf doors up to size EN 5 (1,250 mm), with mechanical door coordinator

Concealed door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator for double leaf doors
Approved according to DIN EN 1154, size 1-5
Certified in compliance with EN 1158, size 3-6
Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
Meets the requirements of DIN SPEC 1104 / CEN15894
For double-leaf fire and smoke rated doors* with a hinge distance of 1,350 – 2,500 mm
* Additional verification of suitability required for the respective fire or smoke protection door

Concealed guide rail with integrated mechanical door coordinator based on wedge system
Closing speed and latching speed adjustable from top facing regulating valves
Built-in backcheck
Thermodynamic valves for consistent performance
Versions with 4 mm and 8 mm spindle extensions
Large range of applications
Standard colours: silver EV1
Customised finishes available on request

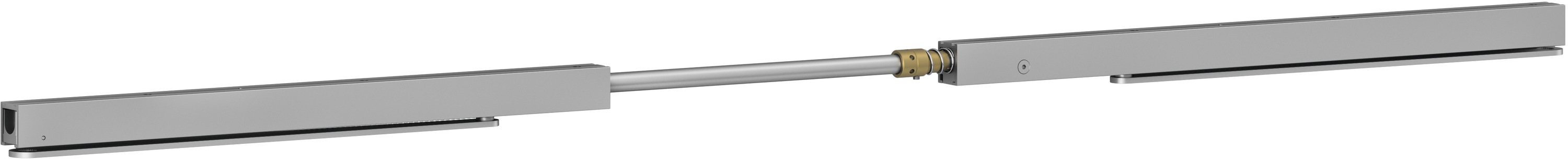

Concealed guide rail G881
Facts for door closer see DC860
Additional verification of suitability required for the respective fire or smoke protection door
Door closer must be ordered separately.

Customer segment	Advantages
Project planners	Extensive range of uses: Fire and smoke protection doors as well as standard doors Fulfils barrier-free building requirements (EA / CEN TR 15894) Comprehensive functions, standard or optional
Builders	Quick and easy installation Quickly and easily adjustable Suitable for left and right handed doors
Trade	Reduced inventory costs due to modular product range One single product suitable for a large variety of mounting positions
User	Easier door opening and improved accessibility due to reapidly decreasing torque Largely unaffected by temperature fluctuations because of thermodynamic valves

Suitable for fire doors	Yes
Max. door opening angle	up to 120°
Certified in compliance with	EN 1158
CE marking for building products	Yes

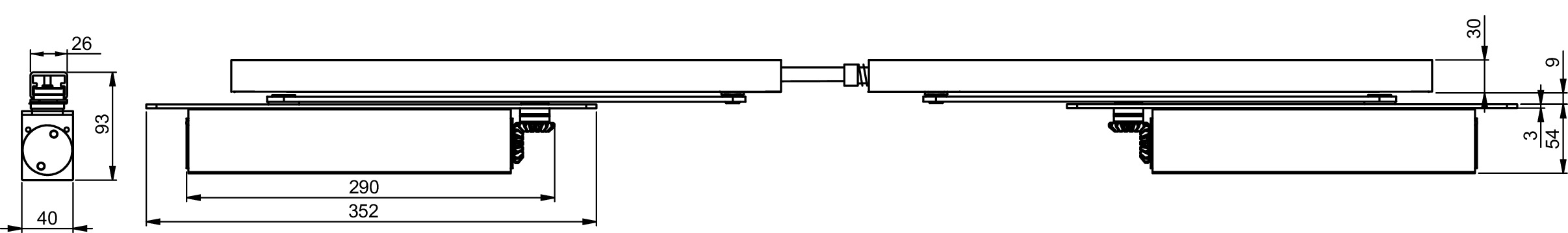

Length	Depending on overall door width
Height	30 mm
Depth	26 mm
Weight	2 kg

Order number	Description
DCG881-----EV1-	With door coordinator, silver EV1
DCG881-----XXXX	With door coordinator, custom colour*

	Order number	Product
	DCA102-----EV1-	Carry bar A102 For two-leaf doors
	DCA114---------	For guide rail G881
	DCA191---------	Opening damper A191 For guide rail G881
	DCA162-------40	Mounting plate set for metal doors.
	DCA105-----35--	Concealed carry bar A105 Concealed carry bar A105
