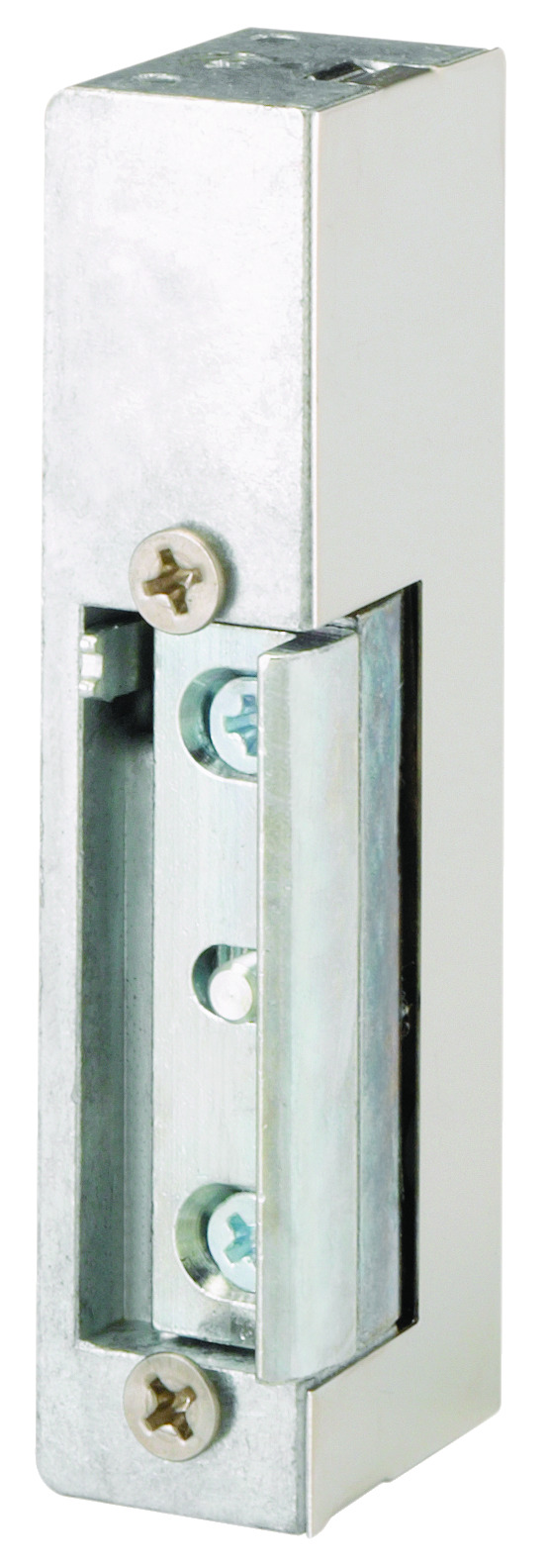

Electric strike 24EFF
Product description
Model with adjustable FaFix® latch and mechanical unlocking (for daytime unlocking).
Overview of Advantages
- Suitable for all common striking plates
- Can be combined with striking plates with latch bolt guide (standard) without FaFix®
- Due to 180° fitting, can be used DIN right and left
Note
- Order code for version DIN right = 24AEFF
| Adjustable keeper (FF, FaFix®) | Yes |
| Mechanical unlocking (E) | Yes |
| Fail-locked | Yes |
| Hold-open function | Yes |
| Break-in resistance | 4000 N |
| Height | 90 mm |
| Width | 20 mm |
| Depth | 28 mm |
| Operating temperature range | -15 °C to +40 °C |
| Material housing | Zinc die-cast |
| Latch material | Zinc die-cast |
| Material screw-on attachment | Zinc die-cast |
| Order number | Description |
|---|---|
| 24EFF-------D11 | Without strike plate, 6-12 V AC/DC |
| 24EFF-------R11 | Without face plate, 8-16 V AC/DC |
| 24EFF-------F11 | Without face plate, 24 V AC/DC |
| 24EFF-------E31 | Without striking plate, 12 V DC electric unlocking |
| 24EFF-------F31 | Without striking plate, 24 V DC electric unlocking |
| 24EFF-------C31 | Without striking plate, 8V DC electric unlocking |
