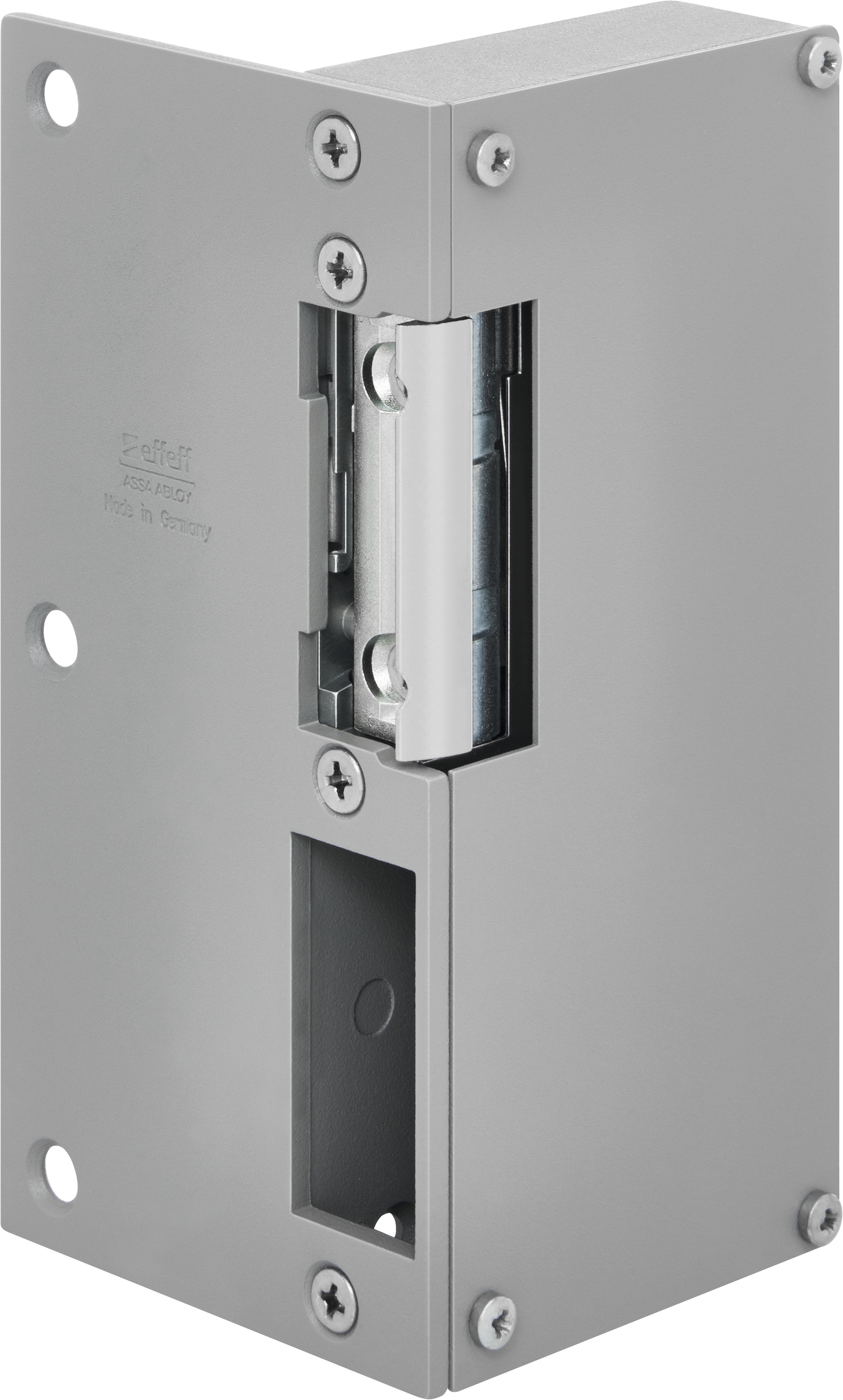

Electric strike in surface-mounted housing 118----A3002
Overview of Advantages
- Possible adjustment for DIN left/right use
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
Scope of delivery
- 1 electric strike in surface-mounted casing
| Adjustable keeper (FF, FaFix®) | Yes |
| Fail-locked | Yes |
| Break-in resistance | 3750 N |
| Height | 132 mm |
| Width | 62 mm |
| Depth | 65 mm |
| FaFix® adjustment range | 3 mm |
| Latch bolt engaging depth | 5.5 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Load cycles for in-plant test | 250000 |
| Suitable for fire doors | No |
| Order number | Description |
|---|---|
| 118----A3002A71 | Without strike plate, 10-24 V AC/DC, universal, grey |
| 118----A3002D11 19 | Without strike plate, 6-12 V AC/DC |
