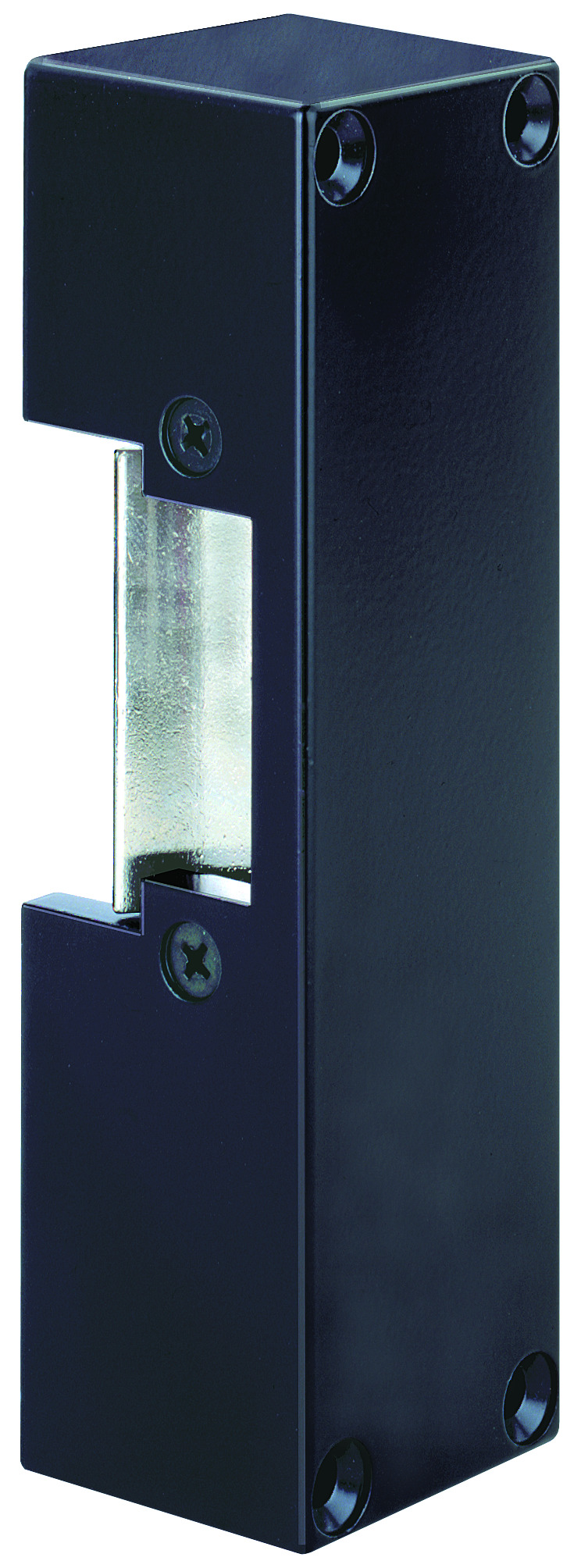

Electric strike 24.400
Product description
Electric strike for surface-mounted panic door locks with horizontal actuating bar.
Overview of Advantages
- Due to 180° fitting, can be used DIN right and left
| Fail-locked | Yes |
| Hold-open function | Yes |
| ATP (anti-panic) | Yes |
| Break-in resistance | 3000 N |
| Height | 146 mm |
| Width | 38 mm |
| Depth | 45 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Material housing | Powder-coated die-cast zinc |
| Latch material | Coated brass |
| Order number | Description |
|---|---|
| 24.400------D11 | Without strike plate, 6-12 V AC/DC |
| 24.400------R11 | Without face plate, 8-16 V AC/DC |
| 24.400------F11 | Without face plate, 24 V AC/DC |
| 24.400------E31 | Without striking plate, 12 V DC electric unlocking |
| 24.400------F31 | Without striking plate, 24 V DC electric unlocking |
